Silv-O-lite · 3173HC-.020K1
Part #: 3173HC-.020K1
UPC: 800745326713
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston Kit - Ford 302ci/5.0L (V8) with Rings
Description:
Description

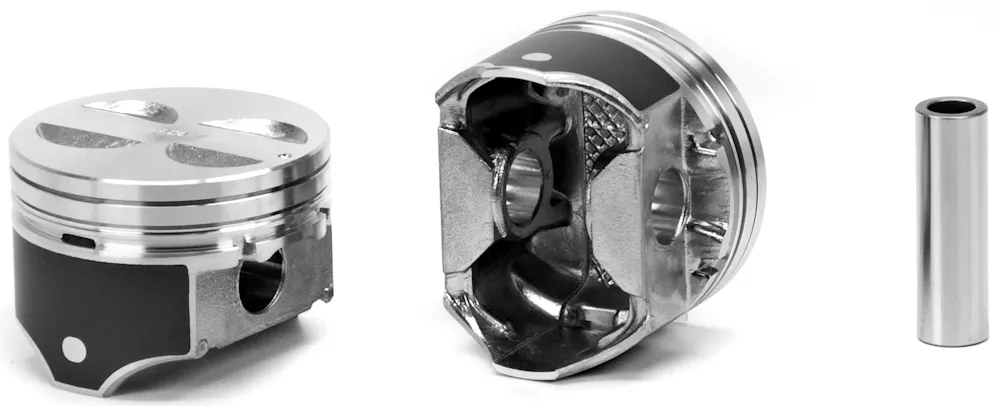

Silv-O-Lite Piston Kit - Ford 302ci/5.0L (V8) with Rings
Features & benefits
- Hypereutectic.
- Flat top.
- 4 valve reliefs.
- Coated skirts.
Specifications
- GTIN
- 00800745326713
- Weight
- 16 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- 3173HC
- Bore (in)
- 4.000
- Bore (mm)
- 101.6
- Compression Ratio
- 9.0:1
- Crown (cc)
- +4cc
- Crown Type
- FLAT TOP
- Cylinder Bore Diameter
- 4.000
- Eng. Disp. In.
- 302
- Eng. Disp. Liters
- 5.0
- Engine Family
- Ford Small Block Windsor
- Engine Manufacturer
- Ford
- Grade Type
- Regular
- Includes Ring Set
- 4000DS8.020
- Oe Assembly
- F7TZ-6108-FA
- Oil Ring Thickness
- 4.0
- Oversize
- .020
- Oversized
- Yes
- Oversized Amount
- .020
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.912
- Pin Diameter (mm)
- 23.16
- Pin Number
- 0912x301A
- Pin Type
- Press
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.912
- Piston Rings Included
- Yes
- Ring Pack
- 1.5, 1.5, 4.0mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 3.000
- Stroke (mm)
- 76.2
- Top Compression Ring Thickness
- 1.5
- Top Land
- .255
- Uses Ring Set
- 4000DS8.020
- Valve Reliefs
- 4
- Vin Code
- P
- Year From
- 1996
- Year Range
- 1996-2000
- Year To
- 2000
