Silv-O-lite · 1423-STDK1
Part #: 1423-STDK1
UPC: 800745293206
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - GM 327ci/5.4L (V8) Kit with Rings
Description:
Description
Silv-O-Lite Piston - GM 327ci/5.4L (V8) Kit with Rings
Features & benefits
- Flat top.
- 4 valve reliefs.
- Includes Ring Set 4000AM8.STD
Specifications
- GTIN
- 00800745293206
- Weight
- 18 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 1423
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Compression Ratio
- 8.7:1
- Crown (cc)
- +4cc
- Crown Type
- FLAT TOP
- Eng. Disp. In.
- 327
- Eng. Disp. Liters
- 5.4
- Engine Family
- Chevy Small Block Gen I
- Engine Manufacturer
- GM
- Includes Ring Set
- 4000AM8.STD
- Oe Assembly
- 3799491
- Oil Ring Thickness
- 3
- Oversize
- STD
- Oversized
- No
- Oversizes
- STD .020 .030 .040 .060 .080
- Pin Configuration
- Offset
- Pin Number
- 0927x300A
- Pin Type
- Press
- Piston Head Type
- Flat
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- 0.927
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 1.2
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 1.2
- Top Land
- 0.25
- Year From
- 1962
- Year Range
- 1962-1969
- Year To
- 1969
Fitment status
Select a vehicle or engine to see whether this part applies to your application.

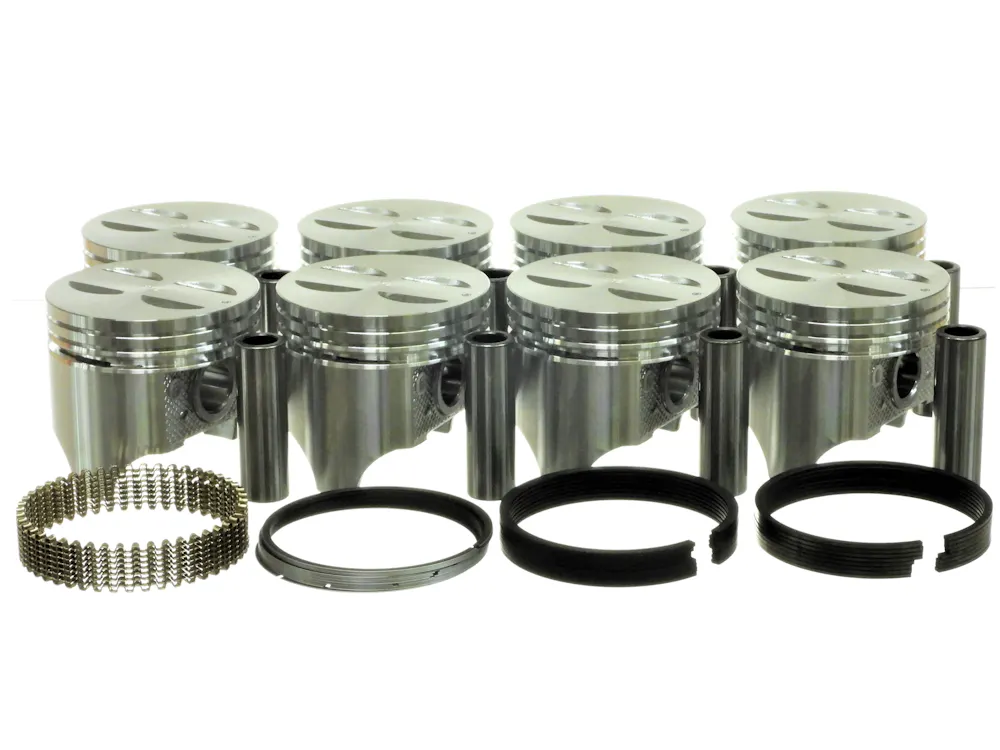

Silv-O-lite 1423-STDK1
