Melling Engine Parts / Melling Tool Co. · M238
Part #: M238
UPC: 729295103301
Log in for inventory
Notify me when this item is in stock.

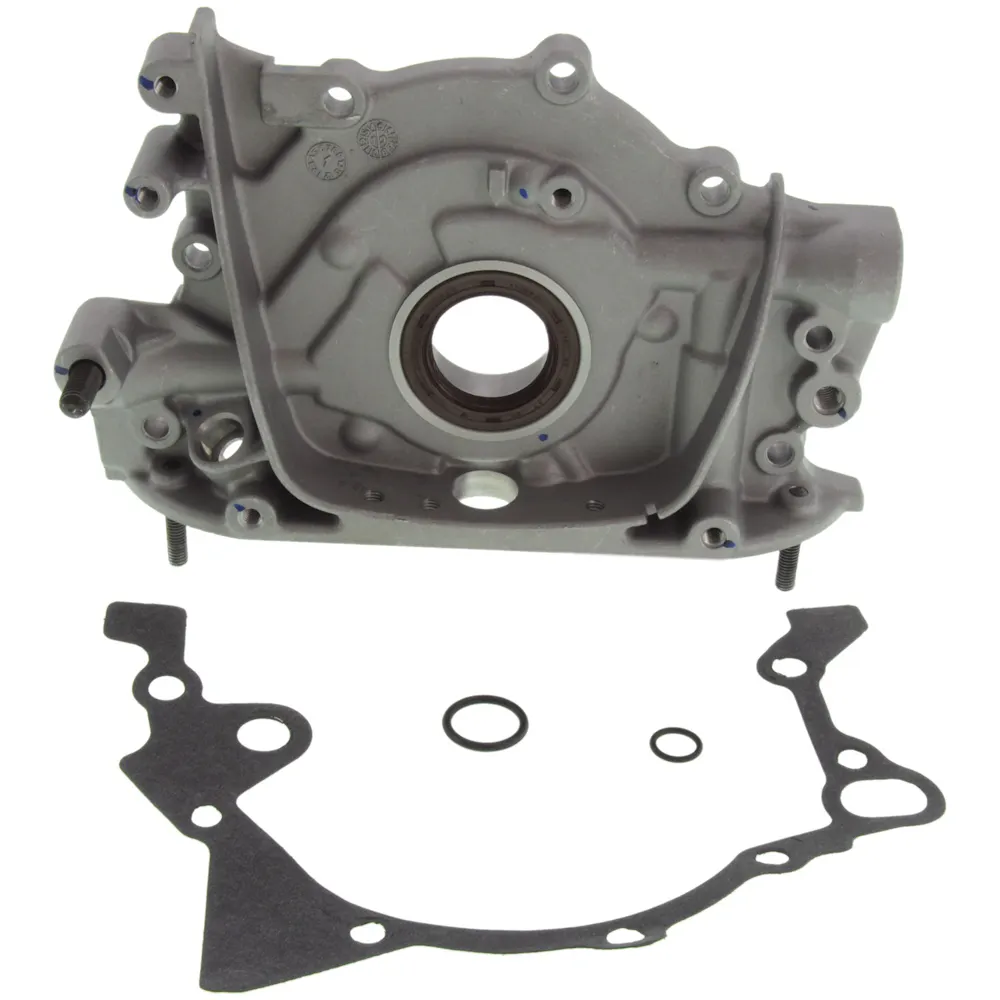

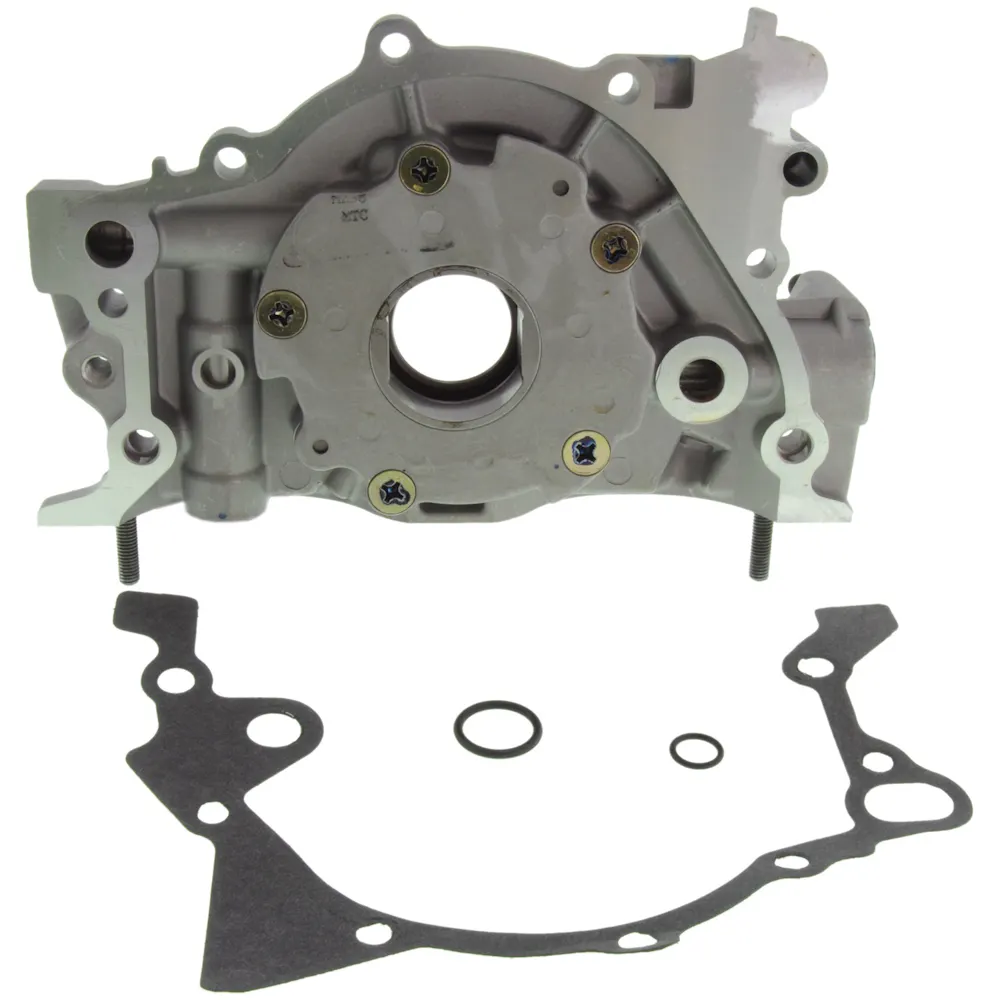

Description: Stock Replacement Oil Pump; M238 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Description:
Description
Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 1998-2001 | Chevrolet Metro |
| 1998-2000 | Chevrolet Tracker |
| 1995-1997 | Geo Metro |
| 1996-1997 | Geo Tracker |
| 1996-2000 | Pontiac Firefly |
| 1998-2001 | Suzuki Esteem |
| 1996-1998 | Suzuki Sidekick |
| 1996-2001 | Suzuki Swift |
| 1999-2001 | Suzuki Vitara |
| 1996-1998 | Suzuki X-90 |
Specifications
- GTIN
- 00729295103301
- Weight
- 2.4 lb
- Height
- 4.75 in
- Length
- 10.75 in
- Width
- 6.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gears Included
- Not Applicable
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 5.86
- Housing Material
- Aluminum
- Inlet Size (in)
- 0.750
- Inlet Size (mm)
- 19.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.25
- Mounting Hole Quantity
- 7
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Type
- Rotary
- Pick Up Tube Diameter
- 0.750
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 8.5
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1998-2001 Chevrolet Metro; 1998-2000 Chevrolet Tracker; 1995-1997 Geo Metro; 1996-1997 Geo Tracker; 1996-2000 Pontiac Firefly; 1998-2001 Suzuki Esteem; 1996-1998 Suzuki Sidekick; 1996-2001 Suzuki Swift; 1999-2001 Suzuki Vitara; 1996-1998 Suzuki X-90
Resources
- Brand logo
- Installation Instructions
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts
Equivalent Parts
Melling Engine Parts / Melling Tool Co. M238
