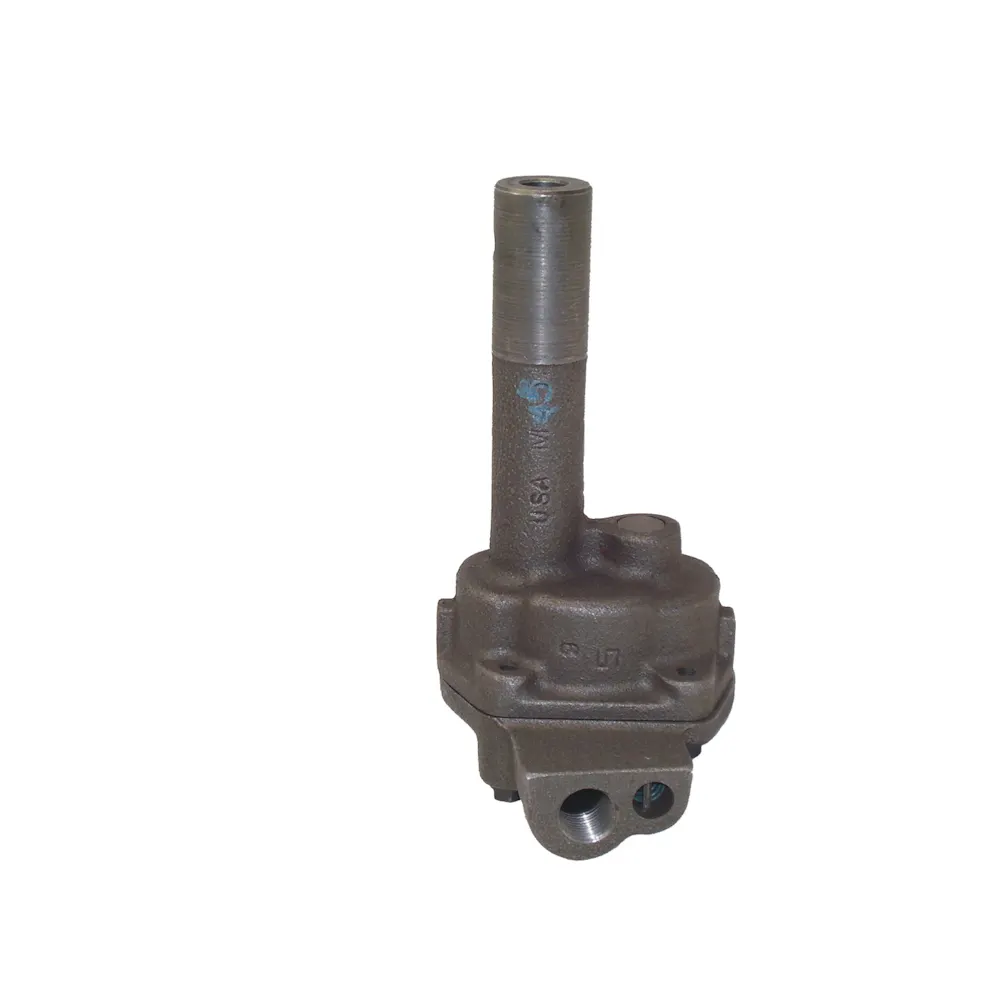

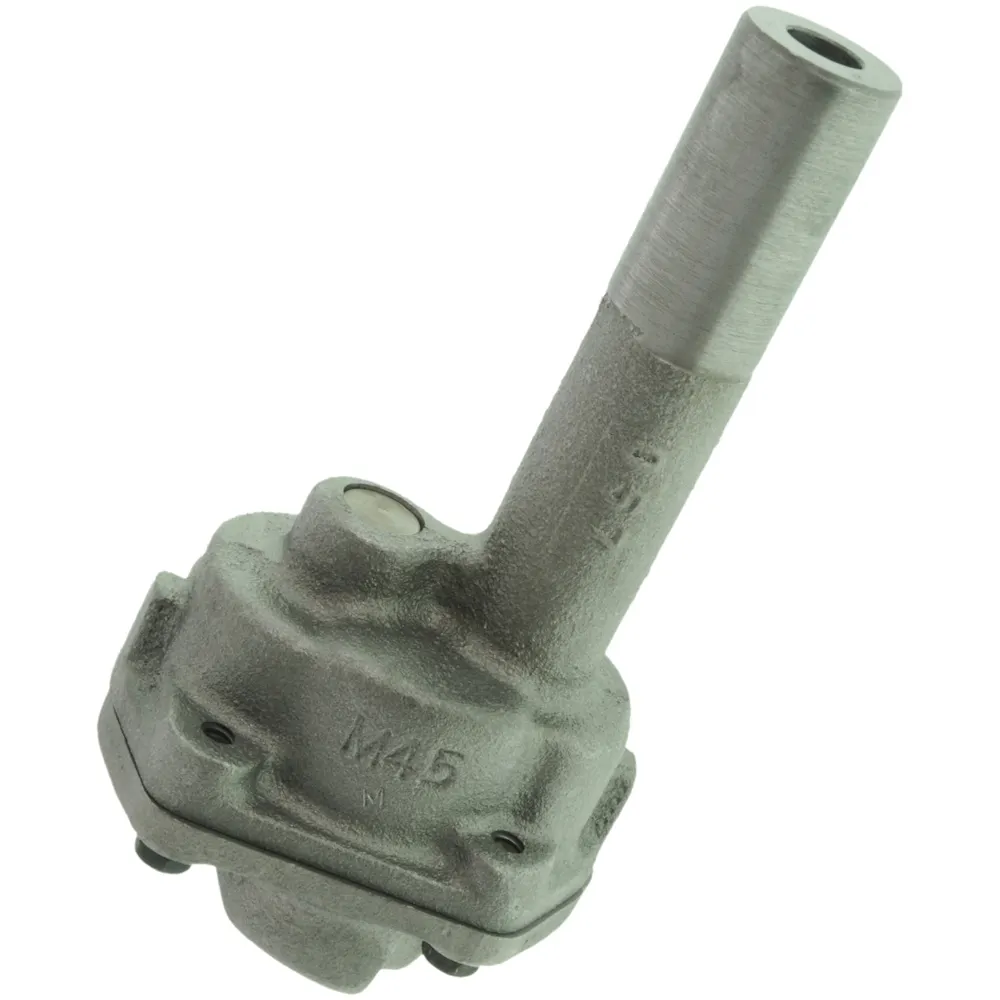

Melling Engine Parts / Melling Tool Co. · M-45
Part #: M-45
UPC: 729295100454
Log in for inventory
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M-45 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 1954 | Chevrolet 1500 |
| 1959 | Chevrolet 3B |
| 1959 | Chevrolet 3C |
| 1959 | Chevrolet 3D |
| 1959 | Chevrolet 3E |
| 1959 | Chevrolet 3F |
| 1959 | Chevrolet 3G |
| 1955-1962 | Chevrolet Bel Air |
| 1958-1962 | Chevrolet Biscayne |
| 1959-1961 | Chevrolet Brookwood |
| 1960-1962 | Chevrolet C10 Panel |
| 1960-1962 | Chevrolet C10 Pickup |
| 1960-1962 | Chevrolet C20 Pickup |
| 1960-1962 | Chevrolet C30 Panel |
| 1960-1962 | Chevrolet C30 Pickup |
| 1960-1962 | Chevrolet C40 |
| 1955 | Chevrolet Corvette |
| 1957-1958 | Chevrolet Del Ray |
| 1959-1960 | Chevrolet El Camino |
| 1958-1962 | Chevrolet Impala |
| 1960-1962 | Chevrolet K10 Pickup |
| 1960-1962 | Chevrolet K20 Pickup |
| 1959-1961 | Chevrolet Kingswood |
| 1958-1961 | Chevrolet Nomad |
| 1955-1957 | Chevrolet One-Fifty Series |
| 1960-1962 | Chevrolet P10 Series |
| 1960-1962 | Chevrolet P20 Series |
| 1960-1962 | Chevrolet P30 Series |
| 1959-1961 | Chevrolet Parkwood |
| 1954-1958 | Chevrolet Sedan Delivery |
| 1960-1962 | Chevrolet Suburban |
| 1954-1958 | Chevrolet Truck |
| 1960 | Chevrolet Truck |
| 1955-1957 | Chevrolet Two-Ten Series |
| 1958 | Chevrolet Yeoman |
| 1961-1962 | GMC 1000 Series |
| 1961-1962 | GMC 1500 Series |
| 1961-1962 | GMC 2500 Series |
| 1961-1962 | GMC 3000 |
| 1961-1962 | GMC 3500 |
| 1961-1962 | GMC Suburban |
Specifications
- GTIN
- 00729295100454
- Weight
- 3.91 lb
- Height
- 5.25 in
- Length
- 8 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- No
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 6.625
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.500
- Inlet Size (mm)
- 12.70
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.433
- Mounting Hole Quantity
- 1
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.500
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 0.393
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1954 Chevrolet 1500; 1959 Chevrolet 3B; 1959 Chevrolet 3C; 1959 Chevrolet 3D; 1959 Chevrolet 3E; 1959 Chevrolet 3F; 1959 Chevrolet 3G; 1955-1962 Chevrolet Bel Air; 1958-1962 Chevrolet Biscayne; 1959-1961 Chevrolet Brookwood; 1960-1962 Chevrolet C10 Panel; 1960-1962 Chevrolet C10 Pickup; 1960-1962 Chevrolet C20 Pickup; 1960-1962 Chevrolet C30 Panel; 1960-1962 Chevrolet C30 Pickup; 1960-1962 Chevrolet C40; 1955 Chevrolet Corvette; 1957-1958 Chevrolet Del Ray; 1959-1960 Chevrolet El Camino; 1958-1962 Chevrolet Impala; 1960-1962 Chevrolet K10 Pickup; 1960-1962 Chevrolet K20 Pickup; 1959-1961 Chevrolet Kingswood; 1958-1961 Chevrolet Nomad; 1955-1957 Chevrolet One-Fifty Series; 1960-1962 Chevrolet P10 Series; 1960-1962 Chevrolet P20 Series; 1960-1962 Chevrolet P30 Series; 1959-1961 Chevrolet Parkwood; 1954-1958 Chevrolet Sedan Delivery; 1960-1962 Chevrolet Suburban; 1954-1958 Chevrolet Truck; 1960 Chevrolet Truck; 1955-1957 Chevrolet Two-Ten Series; 1958 Chevrolet Yeoman; 1961-1962 GMC 1000 Series; 1961-1962 GMC 1500 Series; 1961-1962 GMC 2500 Series; 1961-1962 GMC 3000; 1961-1962 GMC 3500; 1961-1962 GMC Suburban
