Melling Engine Parts / Melling Tool Co. · M-19
Part #: M-19
UPC: 729295100102
Log in for inventory
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M-19 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 1942 | Ford 1 Ton Pickup |
| 1946-1947 | Ford 1 Ton Pickup |
| 1942 | Ford 1/2 Ton Pickup |
| 1946-1947 | Ford 1/2 Ton Pickup |
| 1942 | Ford 3/4 Ton Pickup |
| 1946-1947 | Ford 3/4 Ton Pickup |
| 1953 | Ford Club |
| 1950-1953 | Ford Country Sedan |
| 1950-1953 | Ford Country Squire |
| 1952-1953 | Ford Courier Sedan Delivery |
| 1950-1953 | Ford Crestline |
| 1949-1952 | Ford Custom |
| 1952-1953 | Ford Customline |
| 1946-1951 | Ford Deluxe |
| 1948-1952 | Ford F-1 |
| 1953 | Ford F-100 |
| 1948-1952 | Ford F-2 |
| 1953 | Ford F-250 |
| 1948-1952 | Ford F-3 |
| 1953 | Ford F-350 |
| 1948-1952 | Ford F4 |
| 1949 | Ford Ford |
| 1952-1953 | Ford Mainline |
| 1950-1953 | Ford Ranch Wagon |
| 1942 | Ford Sedan Delivery |
| 1946-1947 | Ford Sedan Delivery |
| 1952-1953 | Ford Sunliner |
| 1946-1948 | Ford Super Deluxe |
| 1951-1953 | Ford Victoria |
| 1952-1953 | Mercury Custom |
| 1946-1952 | Mercury Mercury |
| 1950-1953 | Mercury Monterey |
| 1942 | Mercury Series 29A |
Specifications
- GTIN
- 00729295100102
- Weight
- 3.83 lb
- Height
- 3.25 in
- Length
- 8.25 in
- Width
- 8.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- Yes
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- No
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 8.75
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.560
- Inlet Size (mm)
- 14.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.25
- Mounting Hole Quantity
- 1
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.56
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 2.47
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1942 Ford 1 Ton Pickup; 1946-1947 Ford 1 Ton Pickup; 1942 Ford 1/2 Ton Pickup; 1946-1947 Ford 1/2 Ton Pickup; 1942 Ford 3/4 Ton Pickup; 1946-1947 Ford 3/4 Ton Pickup; 1953 Ford Club; 1950-1953 Ford Country Sedan; 1950-1953 Ford Country Squire; 1952-1953 Ford Courier Sedan Delivery; 1950-1953 Ford Crestline; 1949-1952 Ford Custom; 1952-1953 Ford Customline; 1946-1951 Ford Deluxe; 1948-1952 Ford F-1; 1953 Ford F-100; 1948-1952 Ford F-2; 1953 Ford F-250; 1948-1952 Ford F-3; 1953 Ford F-350; 1948-1952 Ford F4; 1949 Ford Ford; 1952-1953 Ford Mainline; 1950-1953 Ford Ranch Wagon; 1942 Ford Sedan Delivery; 1946-1947 Ford Sedan Delivery; 1952-1953 Ford Sunliner; 1946-1948 Ford Super Deluxe; 1951-1953 Ford Victoria; 1952-1953 Mercury Custom; 1946-1952 Mercury Mercury; 1950-1953 Mercury Monterey; 1942 Mercury Series 29A
Resources
- Brand logo
- Installation Instructions
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts

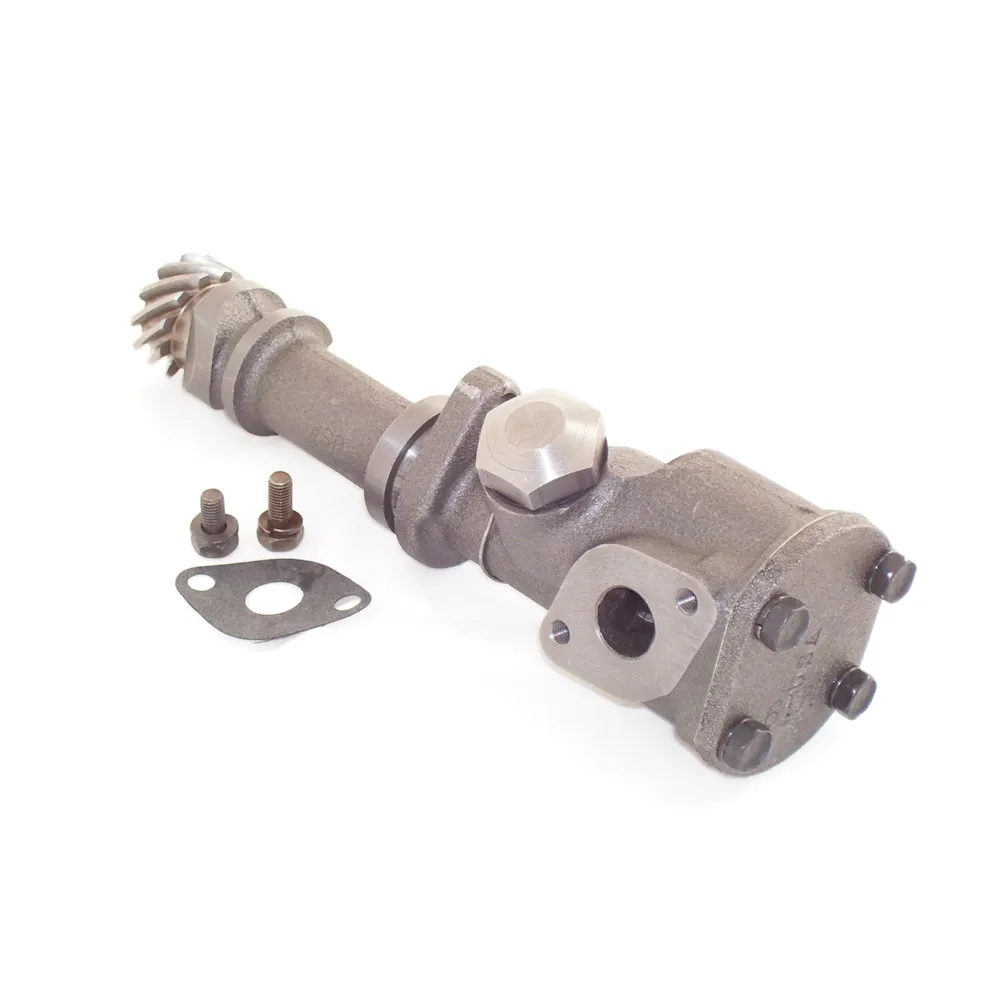

Melling Engine Parts / Melling Tool Co. M-19
