CURT · 51190

Part #: 51190
UPC: 612314511907

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: Brake Controllers

Description: Echo Under-Dash Trailer Brake Controller, Bluetooth® Smartphone Connection; CURT 51190 Echo Under-Dash Proportional Trailer Brake Controller, Bluetooth

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

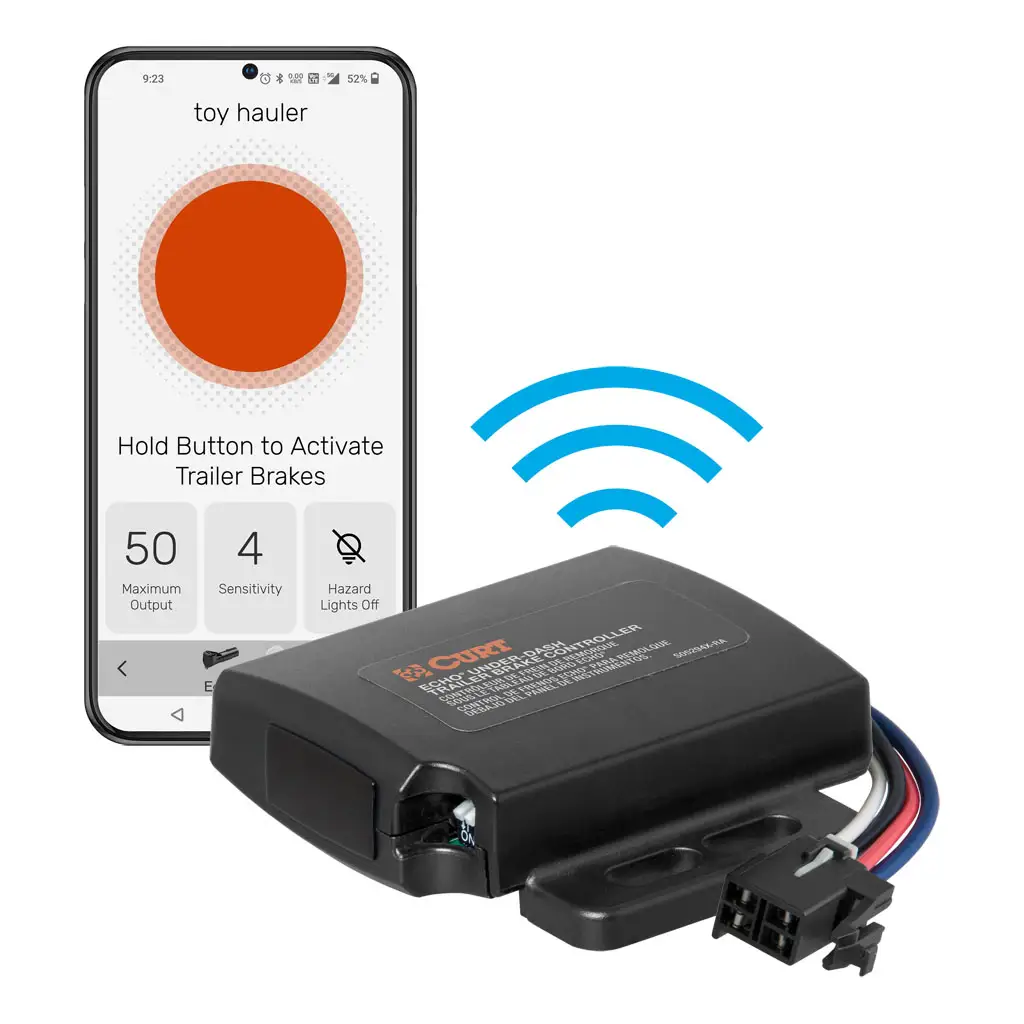

The CURT Echo under-dash trailer brake controller is a Bluetooth enabled device that wirelessly connects to your smartphone and allows you to control and monitor all trailer brake activity right from your device. The Echo brake controller brings your towing experience into the modern age. Powered by Bluetooth, it wirelessly connects to your smartphone without any extra modules required. Simply download the Smart Control app on your Apple iOS or Android OS device, plug the Echo into your vehicle and you're ready to start towing. The app allows you to create multiple trailer profiles for different towing situations. The CURT Echo under-dash brake controller operates with a tri-axis circuit for smooth stops going up or down a hill, and it is able to operate up to two to eight trailer brakes at a time (one to four axles). It is also compatible with cruise control and ABS brakes.

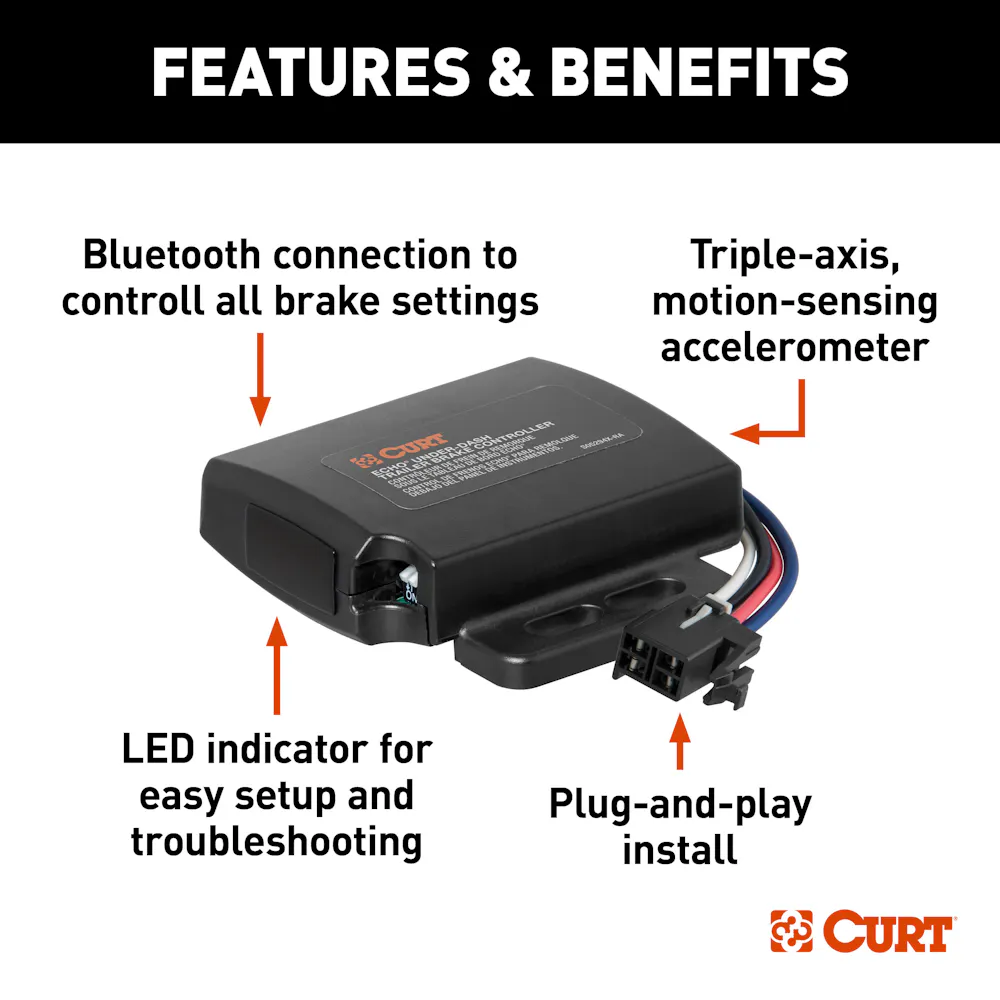

Features & benefits

Bluetooth connection to control all brake settings from your smartphone
Custom-designed app monitors brake activity and sends status updates
Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
Stores multiple trailer profiles
Operates 2-8 trailer brakes at a time (1-4 axles)
Multi-color LED indicator for easy setup and troubleshooting
Clear, in-app warning system for voltage recognition and no-brake situations
Downloadable app available for Apple iOS and Android OS
Sleep mode feature included to reduce power drain
Simple installation using included adhesive pad or zip ties
Plug-and-play install with vehicle-specific quick plug harness (sold separately)
Automatic calibration reduces setup requirements
Allows incoming calls to be received while app is running
Compatible with low-volt, PWM, ABS, and cruise control
Built-in reverse-polarity and short-circuit protection
Limited lifetime warranty
Patent 11,975,702

Information

Bluetooth connection to control all brake settings from your smartphone

Application summary

Year	Make / model
1190	Echo Under-Dash Electric Trailer Brake Controller with Bluetooth® Enabled Smartphone Connection, Proportional

Specifications

GTIN: 00612314511907
Weight: 0.29 lb
Height: 2 in
Length: 9 in
Width: 4 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

Activation: Tri-axis inertia
Axles: 1-4
Box Height in Inches - XA: 2
Box Length in Inches - XA: 7
Box Width in Inches - XA: 4
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Display: Phone App
Finish: BLACK PLASTIC
Finish - XA: BLACK PLASTIC
Item Class - XA: CME
Item Height - XA: 10.000
Item Length - XA: 18.000
Item Width - XA: 8.000
Level Adjust: Auto
Master Case Height Inches - XA: 10.000
Master Case ITF14: 20612314511901
Master Case ITF14 - XA: 20612314511901
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 18.000
Master Case Qty - XA: 18
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 6.184
Master Case Width Inches - XA: 8.000
Material - XA: Plastic
Mount Angles: N/A
Mount Type Description - XA: Not Applicable
Pallet Case Per - XA: 40
Pallet Case Per Layer - XA: 10
Pallet Cases Per - XA: 40
Pallet Cases Per Layer - XA: 10
Pallet Layer of Cases - XA: 4
Pallet Qty - XA: 720.000
Pallet Total Height Inches - XA: 47.500
Pallet Total Weight Per - XA: 287.360
Parcel Allowed - XA: Yes
Product Weight - XA: 0.000
Rate Class - XA: 70.0
Retail Height - XA: 2.000
Retail Length - XA: 9.000
Retail Width - XA: 4.000
Sales Family Code - XA: ELECT
Sales Family Description - XA: ELECTRICAL COMPONENTS
Sales Group Description - XA: CNTRL
Shipping Weight - XA: 0.288
Side Application Type Description - XA: Not Applicable
Tariff 301 - XA: No
Title: Echo Under-Dash Trailer Brake Controller, Bluetooth® Smartphone Connection
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Warranty: One-Year Limited Warranty
