Description: 2" Trailer Ball (1" x 2-1/8" Shank, 7,500 lbs., Chrome, Packaged); CURT 40170 2-Inch Chrome Trailer Hitch Ball, 7,500 lbs, 1 x 2-1/8-Inch Shank, Packaged
Description:
Description

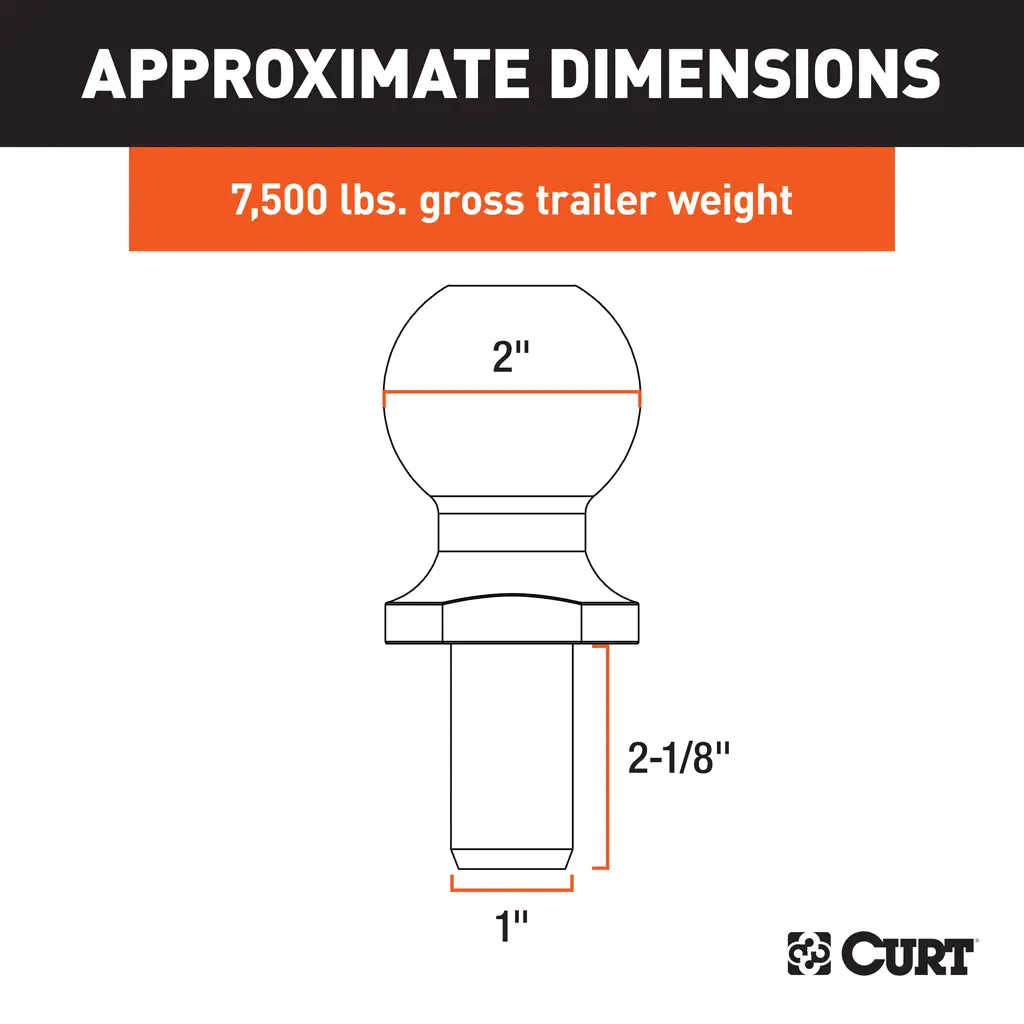

The CURT 2-inch trailer ball is constructed with precision, finished for longevity and tested for maximum confidence in your towing setup. This tow ball is rated for 7,500 pounds gross trailer weight. It has a 2-inch diameter ball to couple to a 2-inch trailer coupler. The stem of this hitch ball is 1 inch in diameter and 2-1/8 inches long. It provides an excellent complement to most class 3 and class 4 hitches. The shank is constructed with fine threads for enhanced torqueing and holding strength. This 2-inch trailer hitch ball is made from high-strength steel and covered in a chrome finish for corrosion resistance. It is also thoroughly tested according to VESC specifications for safety.

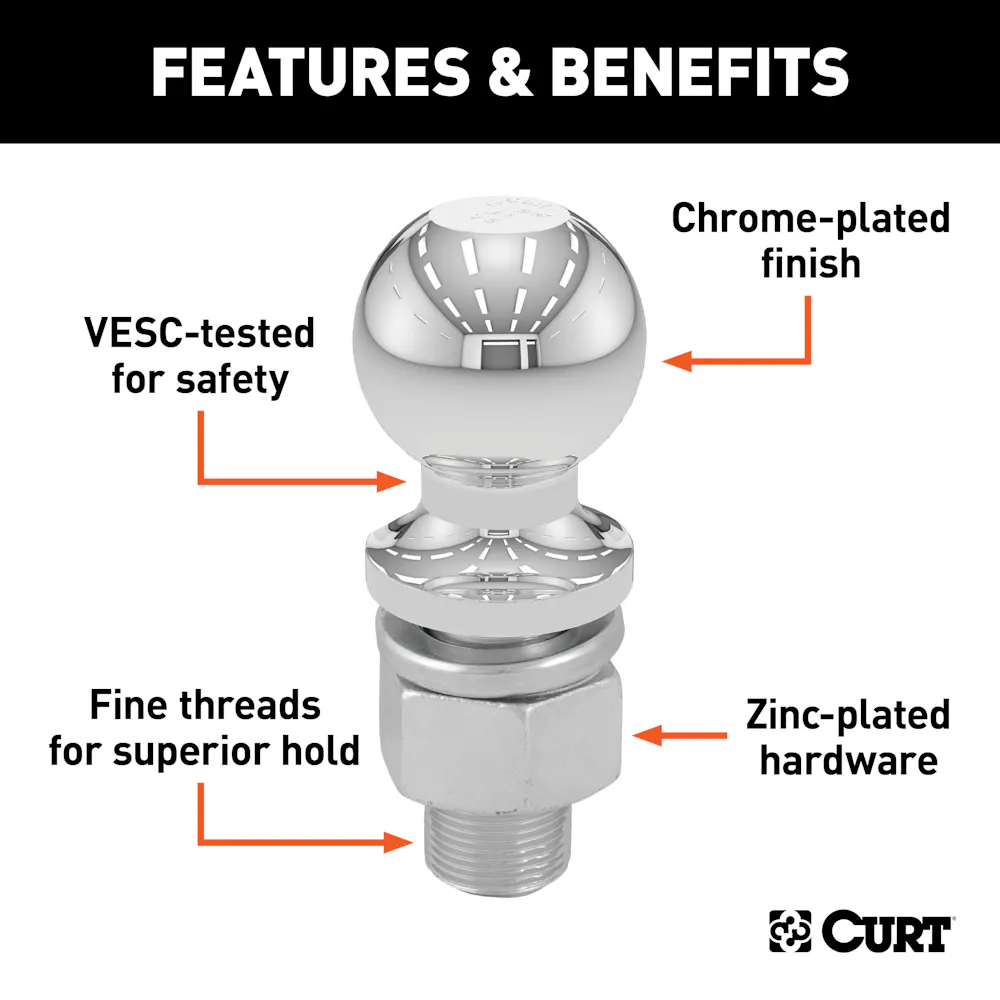

Features & benefits
- Constructed from high-strength, hot-forged steel
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-5 specifications
- Limited lifetime warranty (one-year finish, one-year parts)
- The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank
- Fits 2" couplers and accepts up to 7,500 lbs. GTW
Information
The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank
Application summary
| Year | Make / model |
|---|---|
| 0170 | 2-Inch Chrome Trailer Hitch Ball, 7,500 lbs, 1 x 2-1/8-Inch Shank, Packaged |
Specifications
- GTIN
- 00612314050680
- Weight
- 3 lb
- Height
- 3 in
- Length
- 6 in
- Width
- 5 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Ball Capacity
- 7,500 LBS
- Ball Diameter
- 2.000 in.
- Ball Shank Diameter
- 1.000 in.
- Box Height in Inches - XA
- 2
- Box Length in Inches - XA
- 7
- Box Width in Inches - XA
- 4
- California Proposition 65
- Yes
- Container Cases Qty - XA
- 864
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 18
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 10368
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 30918
- Finish
- CHROME-PLATED
- Finish - XA
- CHROME-PLATED
- Gross Load
- 7500 lbs.
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 8.300
- Master Case ITF14
- 60612314050682
- Master Case ITF14 - XA
- 60612314050682
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 15.000
- Master Case Qty - XA
- 12
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 34.640
- Master Case Width Inches - XA
- 9.000
- Material - XA
- FORGED STEEL
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 48
- Pallet Case Per Layer - XA
- 12
- Pallet Cases Per - XA
- 48
- Pallet Cases Per Layer - XA
- 12
- Pallet Layer of Cases - XA
- 4
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 41.500
- Pallet Total Weight Per - XA
- 1717.720
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 60.0
- Retail Height - XA
- 6.000
- Retail Length - XA
- 3.000
- Retail Width - XA
- 5.000
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- TRAILER BALLS
- Shank Diameter
- 1 IN
- Shank Length
- 2.125 in.
- Shipping Weight - XA
- 3.000
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- 2" Trailer Ball (1" x 2-1/8" Shank, 7,500 lbs., Chrome, Packaged)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
