CURT · 12165

Part #: 12165
UPC: 612314121656

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Class 2 Hitches

Description: Class 2 Trailer Hitch, 1-1/4" Receiver, Select Hyundai Genesis, G80, G90; CURT 12165 Class 2 Trailer Hitch, 1-1/4-Inch Receiver, Fits Select Hyundai Genesis, G80, G90

Description:

Description

Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Hyundai Genesis, Genesis G80 and Genesis G90 (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.

Features & benefits

  • Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight

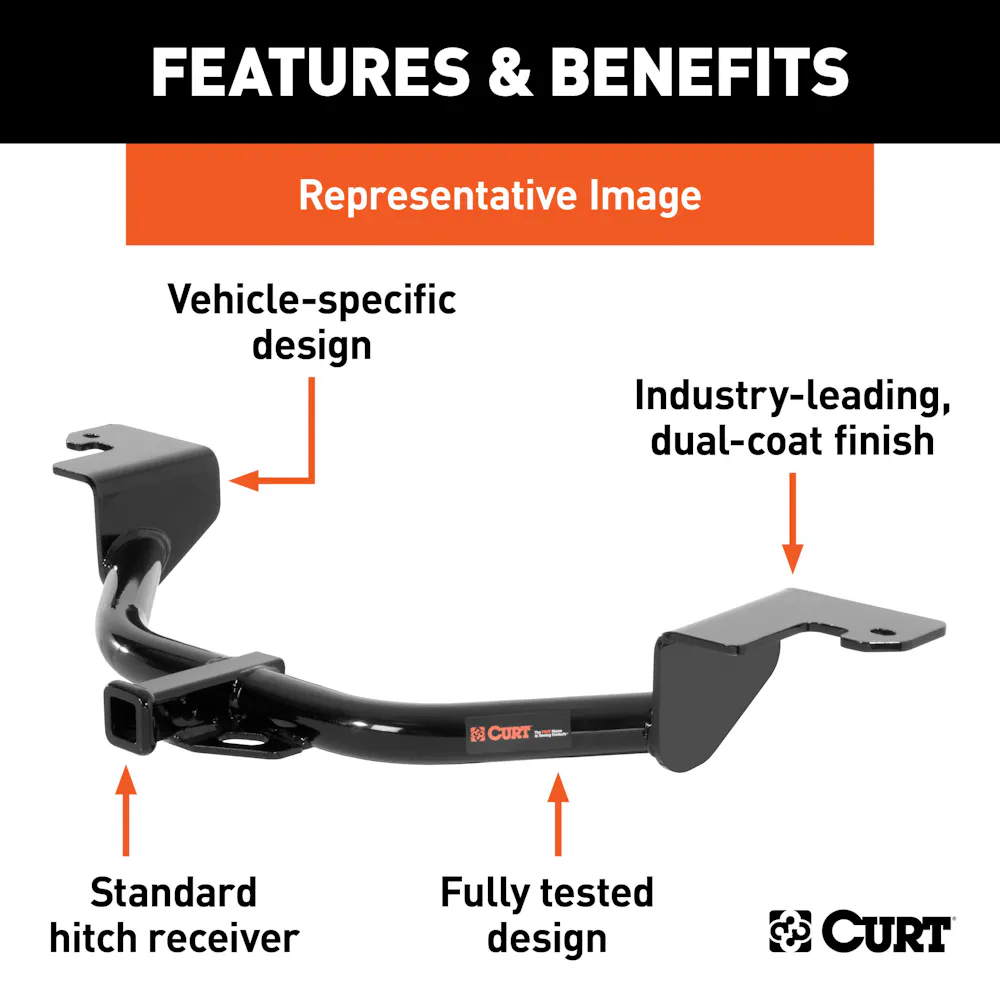

  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable high-gloss black powder coat finish

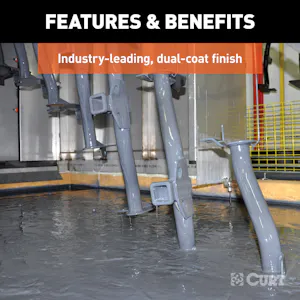

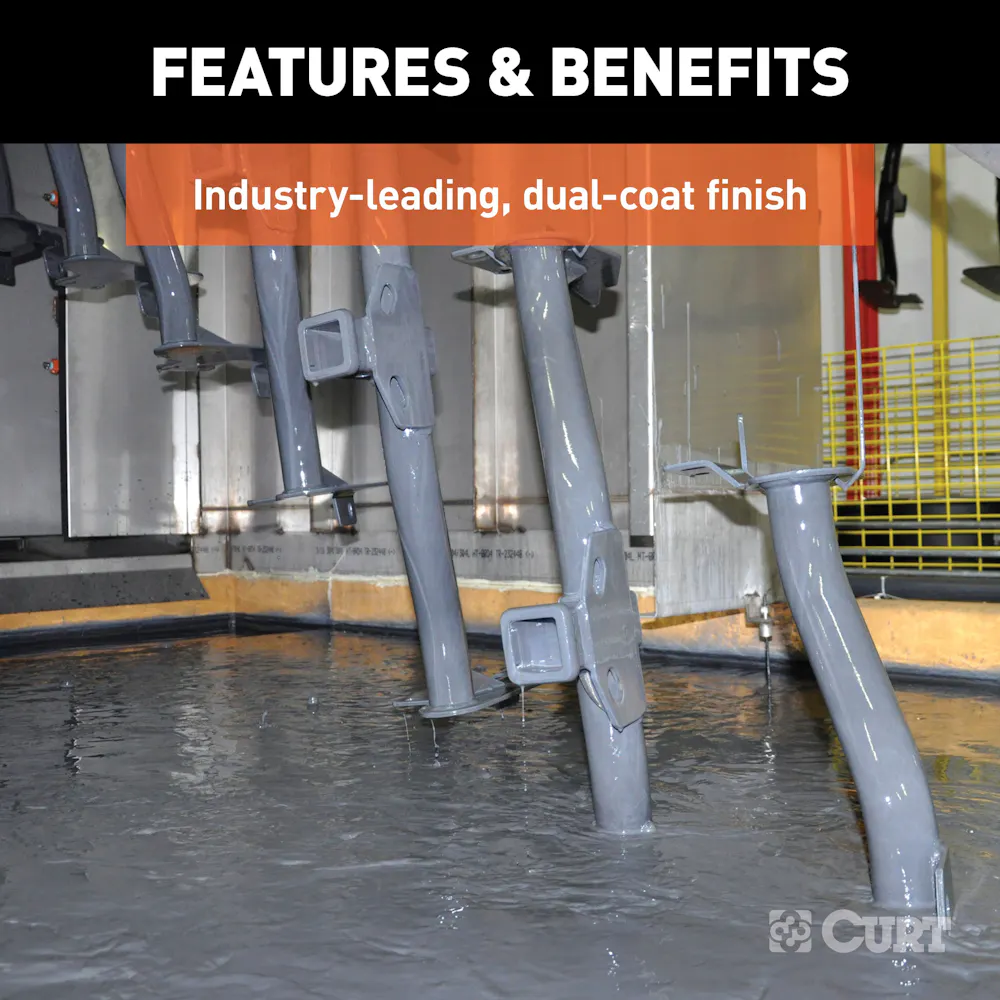

  • Co-cured in a rust-resistant liquid A-coat, inside and out

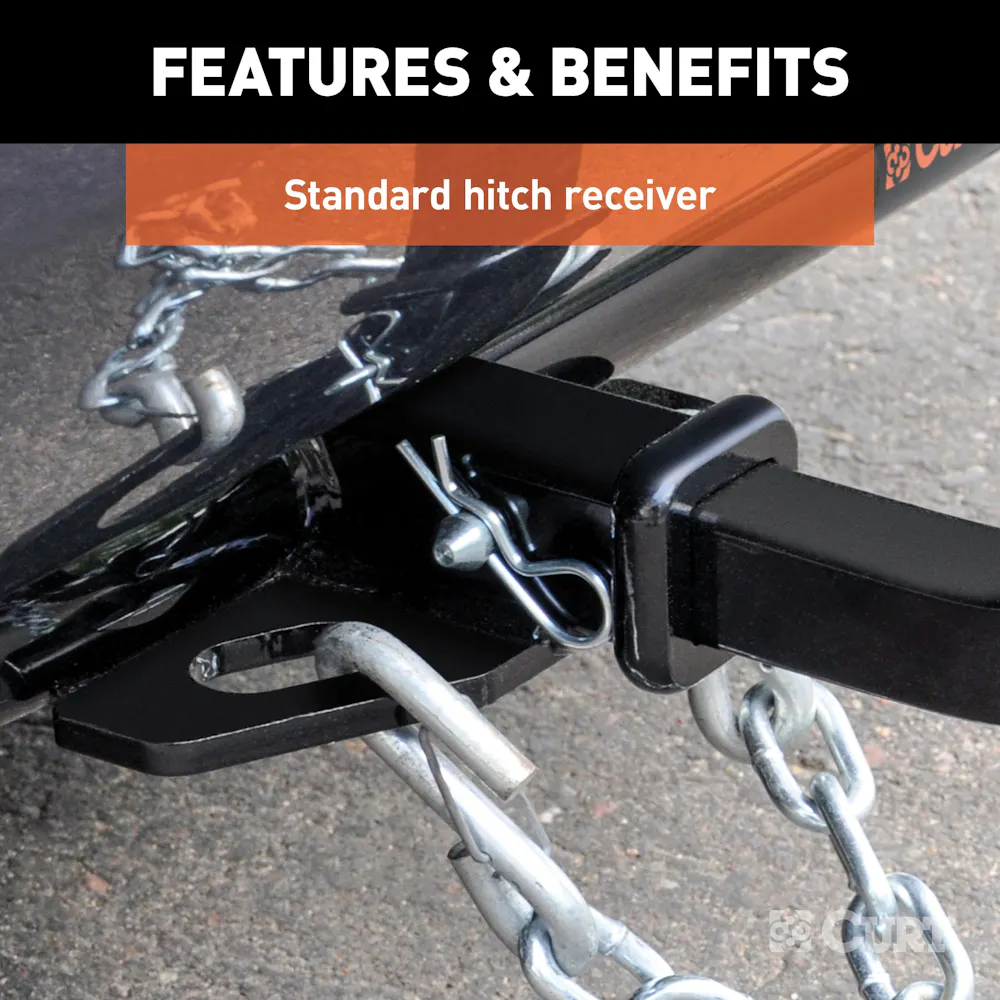

  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Designed, welded, and coated in Wisconsin

Information

Designed, welded, and coated in Wisconsin

Application summary

Year Make / model
2017-2020 Genesis G80
2017-2019 Genesis G90
2012 Hyundai Genesis
2015-2016 Hyundai Genesis

Specifications

GTIN
00612314121656
Weight
32.14 lb
Height
12 in
Length
45 in
Width
21 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

Attachment Location
Rear
Body Shape
Round
Box Height in Inches - XA
19
Box Length in Inches - XA
44
Box Width in Inches - XA
11
California Proposition 65
Yes
Class ID
2
Color
Black
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drilling Required
Yes
Finish
GLOSS BLACK POWDER COAT
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
3500 lbs.
Gross Trailer Weight (lbs.)
3500
Hitch Class
II
Install Time
30 Minutes
Item Class - XA
MFH
Item Height - XA
10.400
Item Length - XA
42.250
Item Width - XA
18.810
Main Body Shape
Round
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material
Carbon Steel
Material - XA
Carbon Steel
Mount Type Description - XA
Blank
Mounting Hardware Included
Yes
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
24.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Position
Rear
Price Code - XA
157
Product Weight - XA
26.000
Rate Class - XA
175.0
Receiver Included
Yes
Receiver Size
2
Receiver Tube Size
1.250 in.
Retail Height - XA
12.000
Retail Length - XA
45.000
Retail Width - XA
21.000
Sales Family Code - XA
HITCH
Sales Family Description - XA
HITCH
Sales Group Description - XA
CL 2
Shipping Weight - XA
32.140
Side Application Type Description - XA
Blank
Tariff 301 - XA
No
Title
Class 2 Trailer Hitch, 1-1/4" Receiver, Select Hyundai Genesis, G80, G90
Tongue Weight (TW)
350 LB
Tongue Weight(TW)
350 LB
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Visibility
Exposed
WC Tongue Weight
350
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity
3500
Weight Carrying Capacity (WC)
3,500 LB
Weight Carrying Capacity(WC)
3,500 LB
Weight Distribution (WD)
n/a
Weight Distribution Tongue Weight (WDTW)
n/a
Weight Distribution Tongue Weight(WDTW)
N/A
Weight Distribution(WD)
N/A

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2017-2020 Genesis G80; 2017-2019 Genesis G90; 2012 Hyundai Genesis; 2015-2016 Hyundai Genesis
