AutoMeter Products · 5640
Part #: 5640
UPC: 046074056406
Log in for inventory
Notify me when this item is in stock.
Description: GAUGE; OIL TEMP; 2 1/16in.; 340deg.F; STEPPER MOTOR W/PEAK/WARN; ELITE; 2-1/16in. OIL TEMPERATURE; 100-340 deg.F; ELITE
Description:
Description
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Using AutoMeter's advanced 1/8 in. NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. A direct plug in wiring harness is included for ease of installation.
Features & benefits

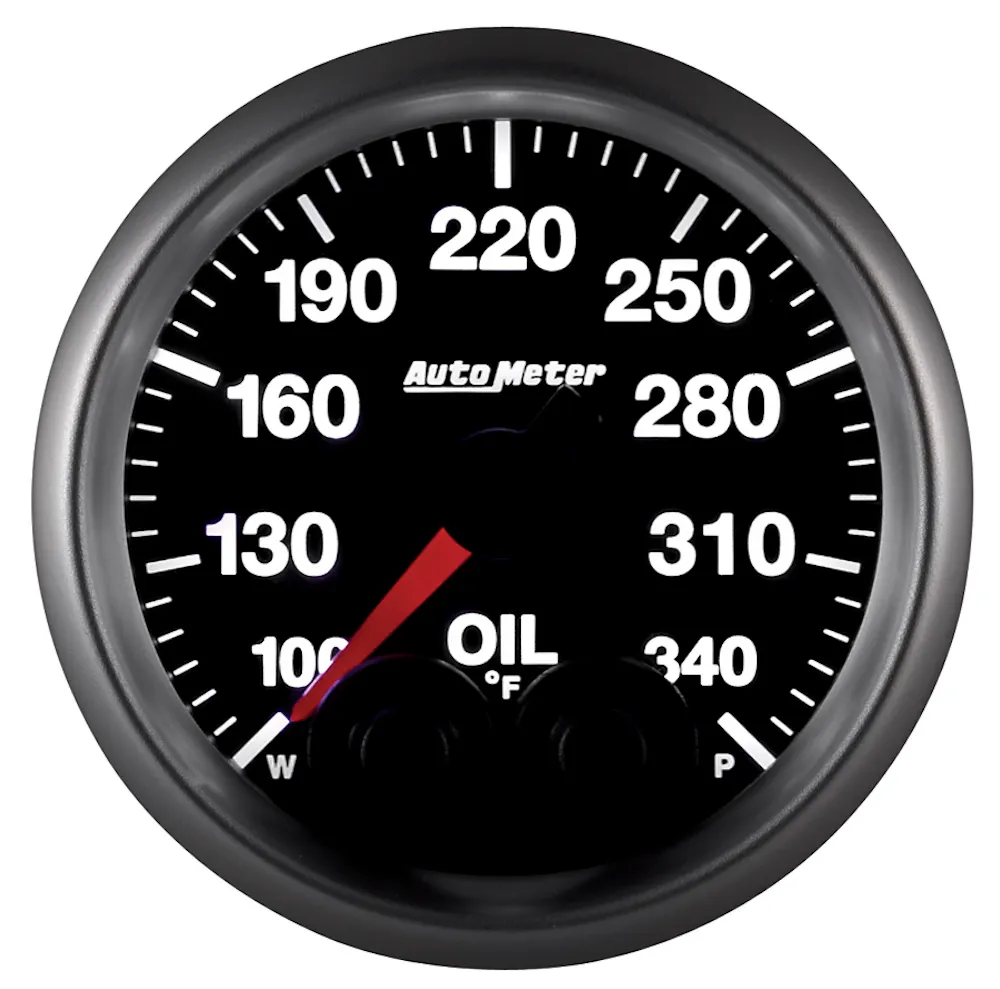

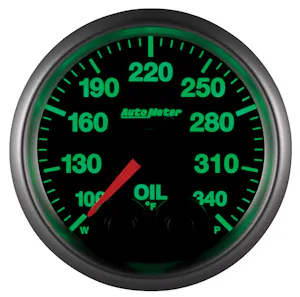

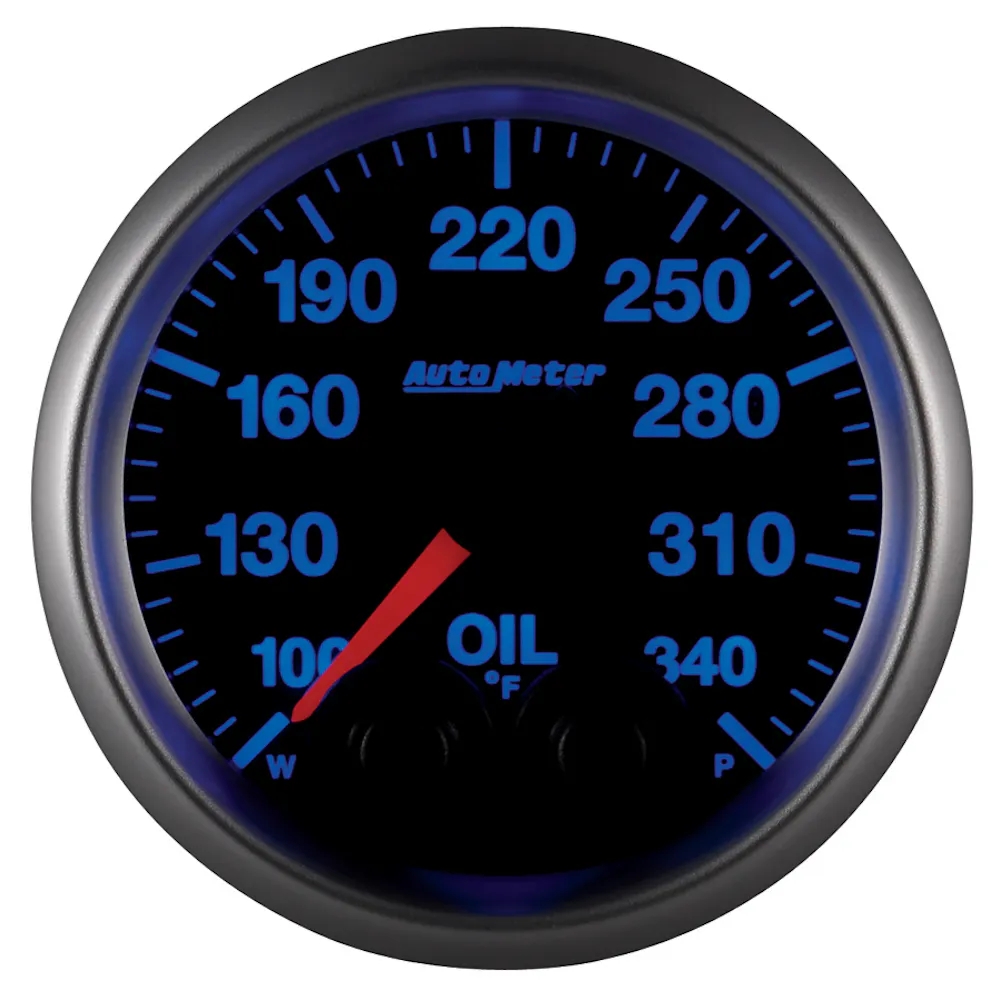

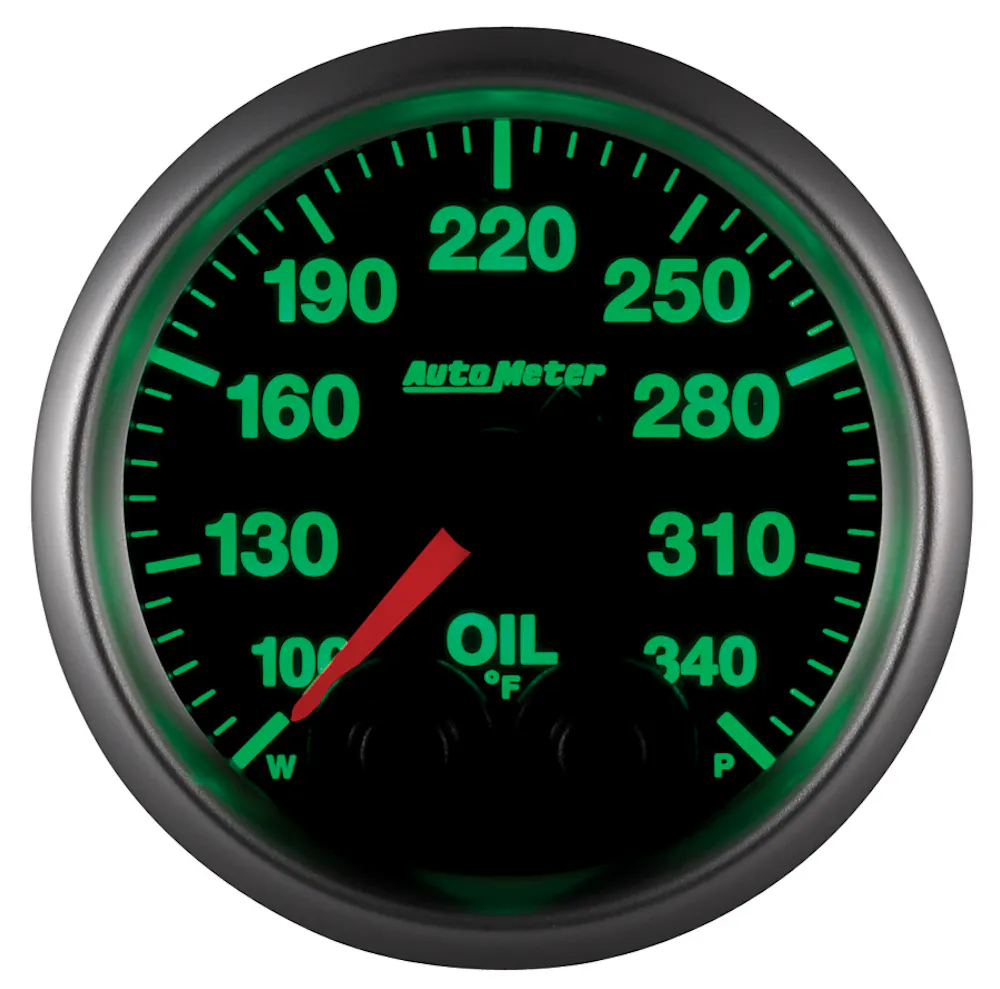

- 7 User Selectable Colors To Match Visual Preferences Of Driver And Visibility Conditions
- 12 And 16 Volt Compatible; Compatible w/Nearly Every Street Car Or Race Car Electrical System
- Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy
- Custom Programmable Activation and Deactivation Points For Key Functions Like Lights; Fans; Switches
- Pumps Allow Drivers To Focus On The Competition While The Gauges Control Key Vehicle Systems
- Set Custom Alert High And Low Points and Receive Warning Notification To Highlight The Need For Driver Attention
- Acquire Data For Later Review With One-Touch Peak Recall Functionality
- Data Logger 0-5V Output Provides ECU And Data Systems With Vital Information
- Gauge Kit Includes 1/8 in. NPT Temperature Sender; 3/8 in. And 1/2 in. NPT Adapters
- Includes Wiring Harness; Mounting Hardware; Detailed Instructions For Installation
Specifications
- GTIN
- 00046074056406
- Weight
- 0.8 lb
- Height
- 4.25 in
- Length
- 4.75 in
- Width
- 4.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 24
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Brushed Aluminum
- Bezel Style
- Super Bezel
- Bulb Technology
- LED
- Bulb Type
- LED
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- Black
- Electric Or Mechanical
- Electric; Digital Stepper Motor
- Face Color
- Black
- Fitting Type
- 0.375 in. NPT and 0.500 in. NPT
- Font Color
- White
- Gauge Size
- 52.4mm
- Gauge Size (in.)
- 2.0625
- Gauge Size (mm)
- 52.4
- Gauge Type
- Oil Temperature
- Hole Size
- 52.4mm
- Lens
- Flat Clear
- Lighting Color
- 7 User Selectable Colors
- Lighting Type
- LED
- Measurement
- US
- Mounting Bracket Number
- 2230
- Movement Type
- Electric Digital Stepper Motor
- Number Color
- White
- Outer Bezel Diameter
- 2.250 in.
- Pointer Color
- Fluorescent Red
- Sending Unit Included
- Yes
- Sending Unit Number
- 2252
- Size
- 2.3125 in.
- Size (in.)
- 2-1/16
- Sweep
- Full
- Temperature
- 0-340° F
- Title
- 2-1/16" OIL TEMPERATURE, 100-340 ?F, ELITE
- Type
- Electrical
- Voltage
- 8-18 V
- Wire Harness Number
- 5276
Fitment status
This product is universal and will fit your application.

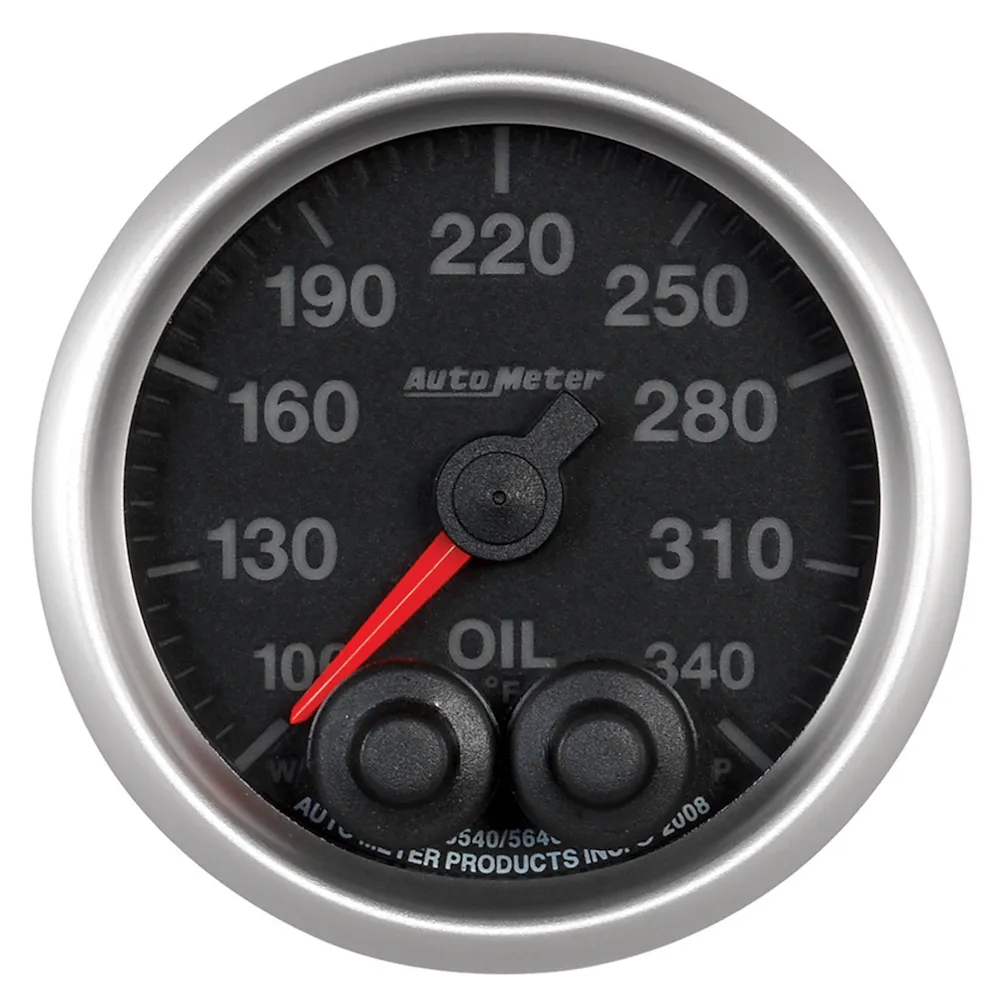

AutoMeter Products 5640
