Speed Pro · H693CP 20
Part #: H693CP 20
UPC: 614046273665
Log in for inventory
Notify me when this item is in stock.

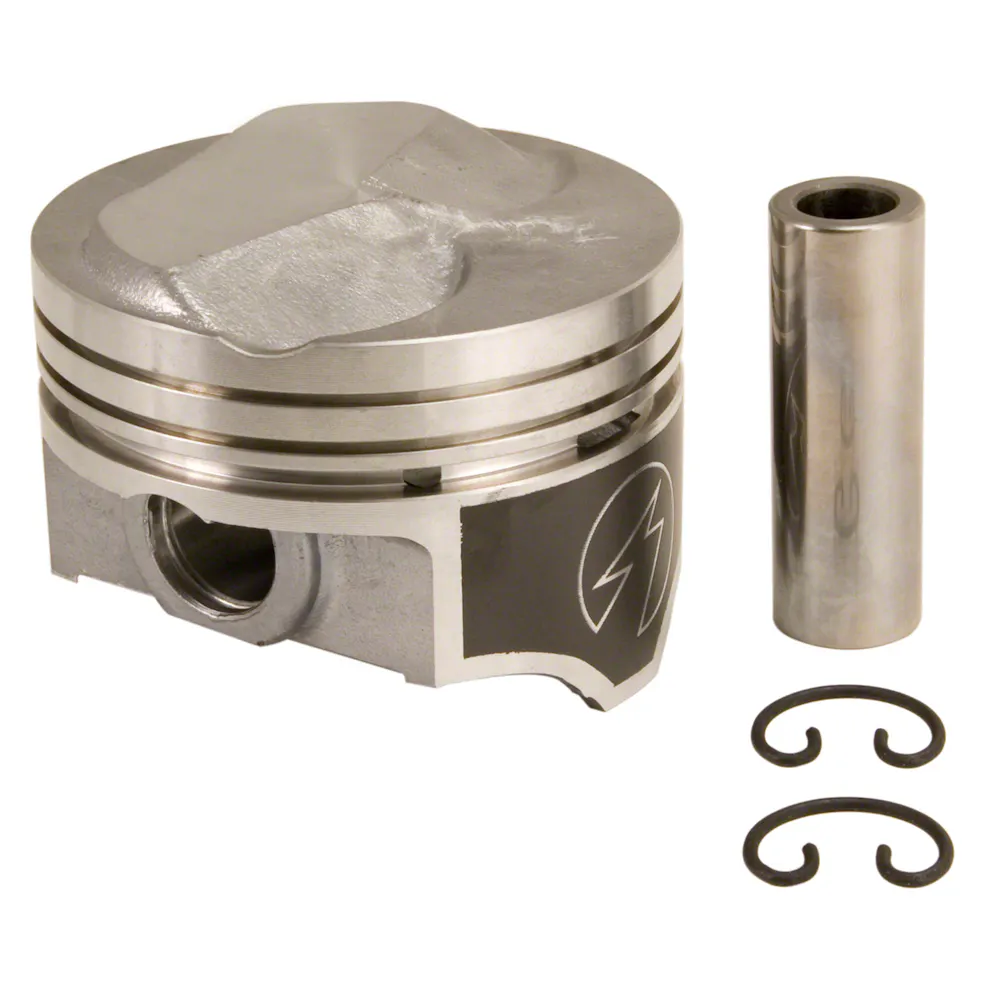

Description: Cast Piston Set; Speed Pro H693CP 20 Engine Piston Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- TACTM ring groove geometry
- Weight matched to +/- 2 grams.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Application summary
| Year | Make / model |
|---|---|
| 1970-1975 | Chevrolet Bel Air |
| 1970-1972 | Chevrolet Biscayne |
| 1970-1972 | Chevrolet Brookwood |
| 1970-1976 | Chevrolet Caprice |
| 1970-1973 | Chevrolet Chevelle |
| 1970-1974 | Chevrolet Corvette |
| 1970 | Chevrolet Estate |
| 1970-1976 | Chevrolet Impala |
| 1970-1972 | Chevrolet Kingswood |
| 1970-1975 | Chevrolet Monte Carlo |
| 1970-1971 | Chevrolet Nova |
| 1970-1972 | Chevrolet Townsman |
| 1970-1971 | Pontiac Acadian |
| 1970 | Pontiac Laurentian |
| 1970 | Pontiac Parisienne |
| 1970 | Pontiac Strato-Chief |
Specifications
- GTIN
- 00614046273665
- Weight
- 14.72 lb
- Height
- 4.92 in
- Length
- 21.37 in
- Width
- 10.26 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.270
- Compression Distance
- 1.640
- Dome Volume CC
- 22.0
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Illustration
- 203

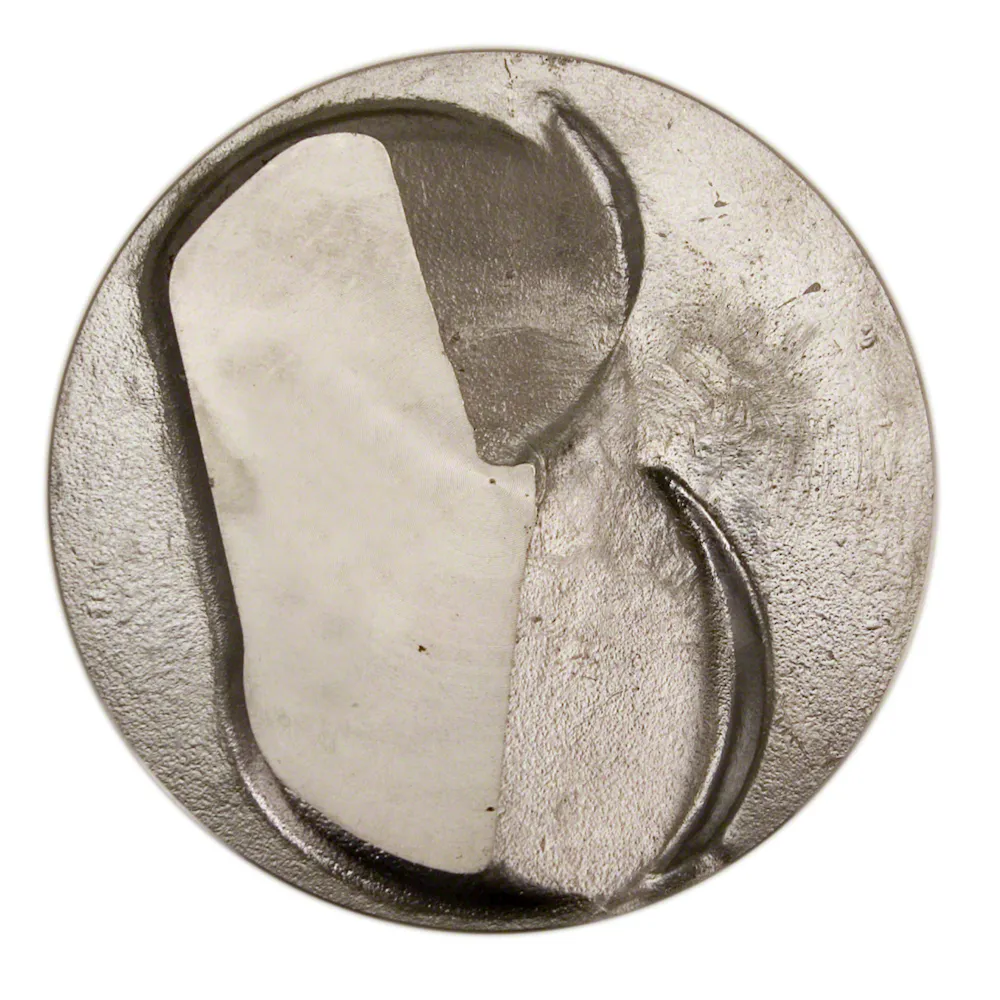

- Head Type
- .230 dome, 2 reliefs; DUROSHIELD skirt coated piston; 60 and 100 O/S have .210 dome
- Lock Ring
- Included
- Minimum Clearance
- .0015
- Oversize Inch
- .020
- Part Description
- Engine Piston
- Part Material
- Hypereutectic
- Pin Diameter (Inch)
- 0.990
- Pin Type
- F
- Pin Weight Gram
- 175
- Weight W Pin Gram
- 893
- Weight w/o Pin Gram
- 718
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1975 Chevrolet Bel Air; 1970-1972 Chevrolet Biscayne; 1970-1972 Chevrolet Brookwood; 1970-1976 Chevrolet Caprice; 1970-1973 Chevrolet Chevelle; 1970-1974 Chevrolet Corvette; 1970 Chevrolet Estate; 1970-1976 Chevrolet Impala; 1970-1972 Chevrolet Kingswood; 1970-1975 Chevrolet Monte Carlo; 1970-1971 Chevrolet Nova; 1970-1972 Chevrolet Townsman; 1970-1971 Pontiac Acadian; 1970 Pontiac Laurentian; 1970 Pontiac Parisienne; 1970 Pontiac Strato-Chief
