Rancho · RS999118
Part #: RS999118
UPC: 039703091183
Log in for inventory
Notify me when this item is in stock.

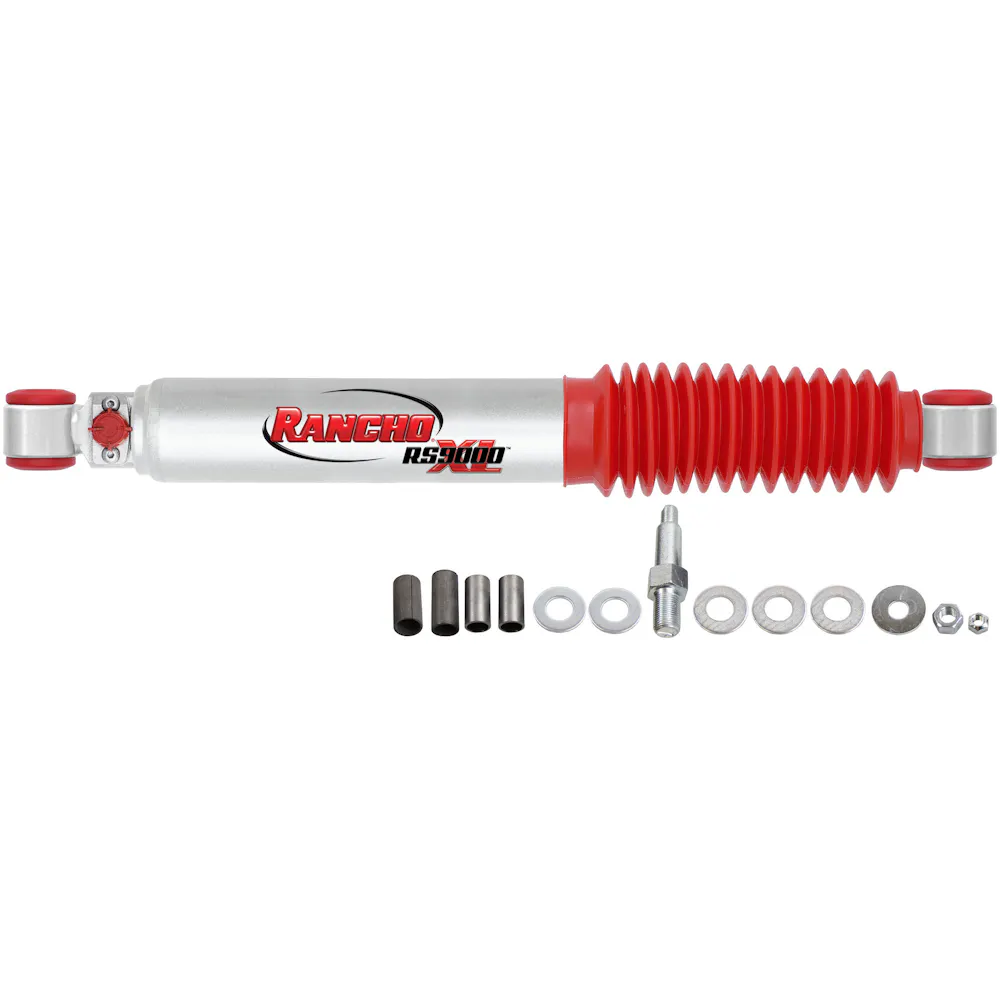

Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999118 Suspension Shock Absorber for Ford F-150
Description:
This part number has been superseded by RS994118.
Description
Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.
Features & benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 1969-1974 | Chevrolet Blazer |
| 1987-1991 | Chevrolet Blazer |
| 1975-1986 | Chevrolet C10 |
| 1973-1974 | Chevrolet C10 Pickup |
| 1967-1986 | Chevrolet C10 Suburban |
| 1975-1986 | Chevrolet C20 |
| 1973-1974 | Chevrolet C20 Pickup |
| 1967-1986 | Chevrolet C20 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1973-1974 | Chevrolet C30 Pickup |
| 1975-1990 | Chevrolet G10 |
| 1964-1969 | Chevrolet G10 Van |
| 1973-1974 | Chevrolet G10 Van |
| 1975-1990 | Chevrolet G20 |
| 1967-1969 | Chevrolet G20 Van |
| 1973-1974 | Chevrolet G20 Van |
| 1975-1986 | Chevrolet K10 |
| 1969-1974 | Chevrolet K10 Pickup |
| 1969-1986 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1969-1974 | Chevrolet K20 Pickup |
| 1969-1986 | Chevrolet K20 Suburban |
| 1975-1986 | Chevrolet K5 Blazer |
| 1987 | Chevrolet R10 |
| 1987-1988 | Chevrolet R10 Suburban |
| 1989-1991 | Chevrolet R1500 Suburban |
| 1987-1988 | Chevrolet R20 |
| 1987-1988 | Chevrolet R20 Suburban |
| 1989 | Chevrolet R2500 |
| 1989-1991 | Chevrolet R2500 Suburban |
| 1987-1988 | Chevrolet R30 |
| 1989-1991 | Chevrolet R3500 |
| 1983-1993 | Chevrolet S10 |
| 1987 | Chevrolet V10 |
| 1987-1988 | Chevrolet V10 Suburban |
| 1989-1991 | Chevrolet V1500 Suburban |
| 1987 | Chevrolet V20 |
| 1987-1988 | Chevrolet V20 Suburban |
| 1989-1991 | Chevrolet V2500 Suburban |
| 1982 | Dodge D50 |
| 1983-1986 | Dodge Power Ram 50 |
| 1987-1989 | Dodge Raider |
| 1983-1985 | Dodge Ram 50 |
| 1987-1991 | Dodge Ram 50 |
| 1968-1971 | Dodge W100 Pickup |
| 1961-1967 | Dodge W100 Series |
| 1968-1971 | Dodge W200 Pickup |
| 1961-1967 | Dodge W200 Series |
| 1966-1996 | Ford Bronco |
| 1997-2002 | Ford Expedition |
| 1966-1976 | Ford F-100 |
| 1980-1983 | Ford F-100 |
| 1996 | Ford F-100 Ranger |
| 1976 | Ford F-150 |
| 1980-1996 | Ford F-150 |
| 1966-1977 | Ford F-250 |
| 1980-1997 | Ford F-350 |
| 1966 | GMC 2500 |
| 1963-1965 | GMC 2500 Series |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1973-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1986 | GMC C1500 |
| 1979-1986 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1973-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1986 | GMC C2500 |
| 1979-1986 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1973-1974 | GMC C35/C3500 Pickup |
Specifications
- GTIN
- 00039703091183
- Weight
- 7.6 lb
- Height
- 24.25 in
- Length
- 3.31 in
- Width
- 3.31 in
- Life cycle
- Available to Order
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Damping
- Yes
- Adjustable Length
- No
- Adjustable Rebound
- Yes
- Air Adjustable
- No
- Air Ride Suspension
- No
- Bearing Plate Included
- No
- Body Color
- Silver
- Body Diameter
- 55.4
- Body Material
- Steel
- Boot Included
- Yes
- California Proposition 65
- No
- Coil Over Springs Included
- No
- Collapsed Length
- 14.320 in.
- Collapsed Length (in.)
- 14.320
- Color
- Silver
- Compressed Bumper Stop
- No
- Compressed Length
- 14.32
- Cylinder Color
- Silver
- Cylinder Included
- No
- Cylinder Material
- Steel
- Cylinder Outside Diameter
- 55.4
- Dust Shield
- Yes
- Dust Shield Color
- Red
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 22.28
- Extended Length (in.)
- 22.280 in.
- Finish
- Painted
- Fully Open Length
- 22.280 in.
- Gas Charged
- Yes
- Grade Type
- Performance
- Internal Construction Type
- Tri Tube
- Lower Mount Code
- L1
- Lower Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Lower Mounting Code
- L1
- Lower Mounting Description
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Max Year Covered
- 2002
- Min Year Covered
- 1961
- Most Popular Make / Model
- Ford F-150
- Most Popular Make/Model
- Ford F-150
- Most Popular Year
- 1995
- Mounting Hardware Included
- Yes
- New Or Remanufactured
- New
- Part Description
- Shock Absorber
- Parts Pack
- P00915,P00912,P01013
- Parts Pack(s)
- P00915,P00912
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.38
- Rod Diameter
- 0.622
- Shaft Material
- Nitrocarburized
- Shock Absorber Body End Measuring Point
- Center of Loop
- Shock Absorber Rod End Measuring Point
- Center of Loop
- Shock Stroke
- 7.96
- Shock Stroke (in.)
- 7.960
- Spring Included
- No
- Spring Isolators Included
- No
- Spring Seat Included
- No
- Total Part VIO
- 3342526
- Travel Length
- 7.96
- Type
- Telescopic
- Upper Mount Code
- L1
- Upper Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Upper Mounting Code
- L1
- Upper Mounting Description
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1974 Chevrolet Blazer; 1987-1991 Chevrolet Blazer; 1975-1986 Chevrolet C10; 1973-1974 Chevrolet C10 Pickup; 1967-1986 Chevrolet C10 Suburban; 1975-1986 Chevrolet C20; 1973-1974 Chevrolet C20 Pickup; 1967-1986 Chevrolet C20 Suburban; 1975-1986 Chevrolet C30; 1973-1974 Chevrolet C30 Pickup; 1975-1990 Chevrolet G10; 1964-1969 Chevrolet G10 Van; 1973-1974 Chevrolet G10 Van; 1975-1990 Chevrolet G20; 1967-1969 Chevrolet G20 Van; 1973-1974 Chevrolet G20 Van; 1975-1986 Chevrolet K10; 1969-1974 Chevrolet K10 Pickup; 1969-1986 Chevrolet K10 Suburban; 1975-1986 Chevrolet K20; 1969-1974 Chevrolet K20 Pickup; 1969-1986 Chevrolet K20 Suburban; 1975-1986 Chevrolet K5 Blazer; 1987 Chevrolet R10; 1987-1988 Chevrolet R10 Suburban; 1989-1991 Chevrolet R1500 Suburban; 1987-1988 Chevrolet R20; 1987-1988 Chevrolet R20 Suburban; 1989 Chevrolet R2500; 1989-1991 Chevrolet R2500 Suburban; 1987-1988 Chevrolet R30; 1989-1991 Chevrolet R3500; 1983-1993 Chevrolet S10; 1987 Chevrolet V10; 1987-1988 Chevrolet V10 Suburban; 1989-1991 Chevrolet V1500 Suburban; 1987 Chevrolet V20; 1987-1988 Chevrolet V20 Suburban; 1989-1991 Chevrolet V2500 Suburban; 1982 Dodge D50; 1983-1986 Dodge Power Ram 50; 1987-1989 Dodge Raider; 1983-1985 Dodge Ram 50; 1987-1991 Dodge Ram 50; 1968-1971 Dodge W100 Pickup; 1961-1967 Dodge W100 Series; 1968-1971 Dodge W200 Pickup; 1961-1967 Dodge W200 Series; 1966-1996 Ford Bronco; 1997-2002 Ford Expedition; 1966-1976 Ford F-100; 1980-1983 Ford F-100; 1996 Ford F-100 Ranger; 1976 Ford F-150; 1980-1996 Ford F-150; 1966-1977 Ford F-250; 1980-1997 Ford F-350; 1966 GMC 2500; 1963-1965 GMC 2500 Series; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1973-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1986 GMC C1500; 1979-1986 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1973-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1986 GMC C2500; 1979-1986 GMC C2500 Suburban; 1975-1978 GMC C35; 1973-1974 GMC C35/C3500 Pickup; ...
