Rancho · RS5240

Part #: RS5240
UPC: 039703524001

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

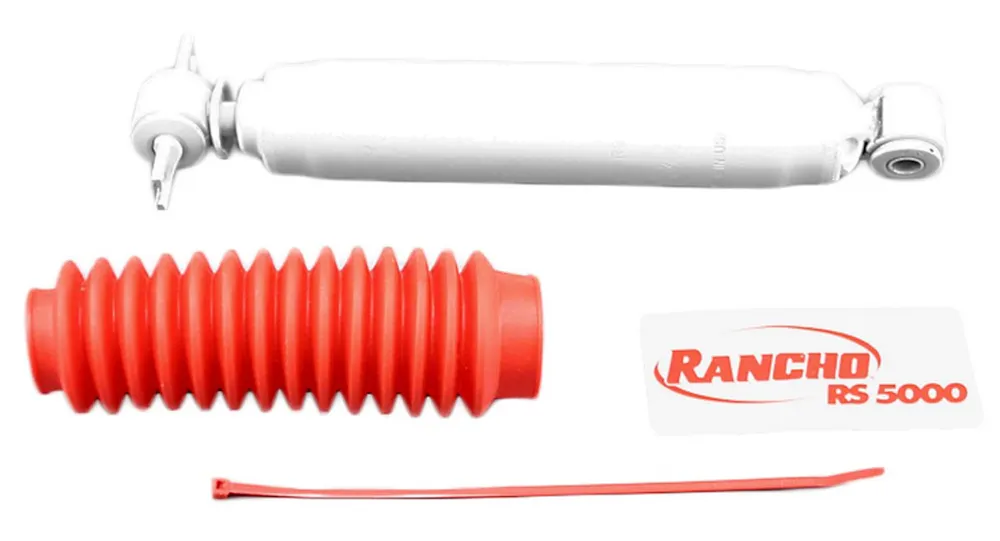

Description: RS5000 Shock Absorber; Rancho RS5240 Shock Absorber

This part number has been superseded by RS55240.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1997-2006	Jeep TJ
1997-2006	Jeep Wrangler

Specifications

GTIN: 00039703524001
Weight: 5.35 lb
Height: 3.31 in
Length: 24.25 in
Width: 4.31 in
EO: Legal US
Life cycle: Obsolete
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.188
California Proposition 65: No
Collapsed Length: 12.890 in.
Collapsed Length (in.): 12.890
Compressed Bumper Stop: No
Compressed Length: 12.89
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 20.02
Extended Length (in.): 20.020 in.
Finish: Painted
Fully Open Length: 20.020 in.
Lower Mount Type: Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.3/8" Sleeve OAL
Lower Mounting Code: Loop Bushing & Sleeve Mount - 0.500 in. Sleeve ID x 1.375 in. Sleeve OAL
Lower Mounting Description: Loop Bushing Sleeve Mount - 1/2 Sleeve ID x 1.3/8 Sleeve OAL
Max Year Covered: 2006
Min Year Covered: 1997
Most Popular Make / Model: Jeep Wrangler
Most Popular Make/Model: Jeep Wrangler
Most Popular Year: 1997
Parts Pack(s): None
Product Grade: Premium
Reserve Tube Diameter: 2.188 in.
Shock Stroke: 7.130 in.
Shock Stroke (in.): 7.130
Total Part VIO: 717645
Travel Length: 7.13
Upper Mount Type: Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center)
Upper Mounting Code: Cross Pin Mount - Open Ended 0.375 in. Hole ID (Bo
Upper Mounting Description: Cross Pin Mount - Open Ended; 3/8 Hole ID (Both Ends) x 3.3/16 Pin Length (Hole Center to Center)
