Rancho · RS5145

Part #: RS5145
UPC: 039703514507

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

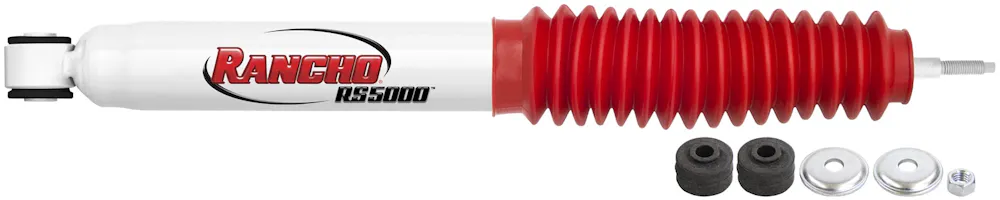

Description: RS5000 Shock Absorber; Rancho RS5145 Shock Absorber

This part number has been superseded by RS55145.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1986-1995	Toyota 4Runner
1986-1995	Toyota Pickup
1993-1998	Toyota T100

Specifications

GTIN: 00039703514507
Weight: 4 lb
Height: 3.31 in
Length: 24.25 in
Width: 3.31 in
EO: Legal US
Life cycle: Obsolete
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.18
California Proposition 65: No
Collapsed Length: 9.430 in.
Collapsed Length (in.): 9.430
Compressed Bumper Stop: No
Compressed Length: 9.43
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 13.44
Extended Length (in.): 13.440 in.
Finish: Painted
Fully Open Length: 13.440 in.
Lower Mount Type: Loop Bushing & Sleeve Mount - 5/8"-16MM Sleeve ID X 1.1/2" Sleeve OAL
Lower Mounting Code: Loop Bushing & Sleeve Mount - 0.625 in. -16mm Slee
Lower Mounting Description: Loop Bushing Sleeve Mount - 5/8-16MM Sleeve ID x 1.1/2 Sleeve OAL
Max Year Covered: 1998
Min Year Covered: 1986
Most Popular Make / Model: Toyota Pickup
Most Popular Make/Model: Toyota Pickup
Most Popular Year: 1994
Parts Pack(s): P01134
Product Grade: Premium
Reserve Tube Diameter: 2.180 in.
Shock Stroke: 4.010 in.
Shock Stroke (in.): 4.010
Total Part VIO: 365987
Travel Length: 4.01
Upper Mount Type: Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Upper Mounting Code: Stem Mount - 2.375 in. Stem Length x 0.375 in. -16
Upper Mounting Description: Stem Mount - 2.3/8 Stem Length x 3/8-16 Thread Pitch
