Rancho · RS5129

Part #: RS5129
UPC: 039703512909

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

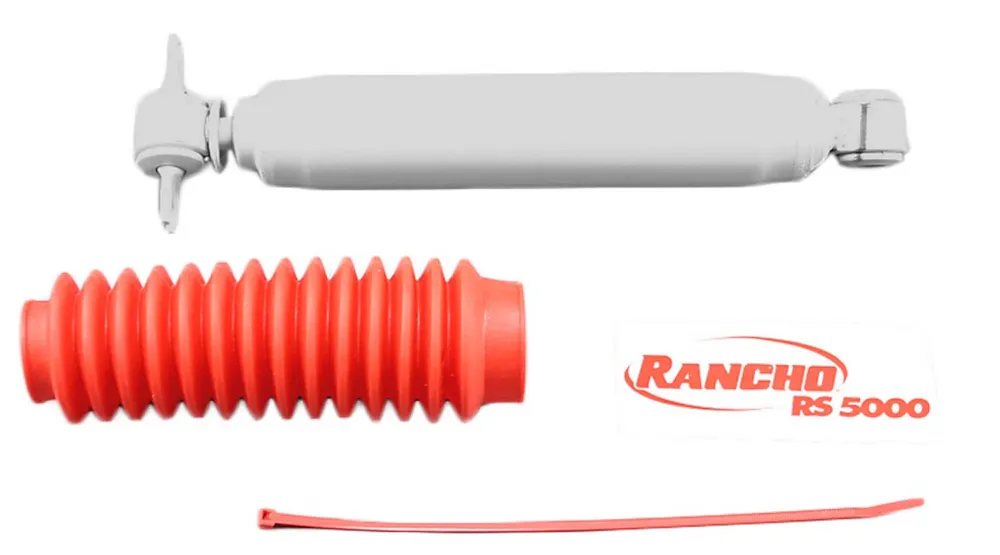

Description: RS5000 Shock Absorber; Rancho RS5129 Shock Absorber

This part number has been superseded by RS55129.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1984-2001	Jeep Cherokee
1984-1990	Jeep Wagoneer

Specifications

GTIN: 00039703512909
Weight: 5.1 lb
Height: 3.31 in
Length: 24.25 in
Width: 4.31 in
EO: Legal US
Life cycle: Obsolete
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.188
California Proposition 65: No
Collapsed Length: 12.900 in.
Collapsed Length (in.): 12.900
Compressed Bumper Stop: No
Compressed Length: 12.9
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 20.03
Extended Length (in.): 20.030 in.
Finish: Painted
Fully Open Length: 20.030 in.
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code: Loop Bushing Mount - 0.625 in. Bushing ID x 1.3125
Lower Mounting Description: Loop Bushing Mount - 5/8 Bushing ID x 1.5/16 Bushing OAL
Max Year Covered: 2001
Min Year Covered: 1984
Most Popular Make / Model: Jeep Cherokee
Most Popular Make/Model: Jeep Cherokee
Most Popular Year: 2000
Parts Pack(s): None
Product Grade: Premium
Reserve Tube Diameter: 2.188 in.
Shock Stroke: 7.130 in.
Shock Stroke (in.): 7.130
Total Part VIO: 582271
Travel Length: 7.13
Upper Mount Type: Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center)
Upper Mounting Code: Cross Pin Mount - Open Ended 0.375 in. Hole ID (Bo
Upper Mounting Description: Cross Pin Mount - Open Ended; 3/8 Hole ID (Both Ends) x 3.3/16 Pin Length (Hole Center to Center)
