Rancho · RS5006

Part #: RS5006
UPC: 039703500609

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

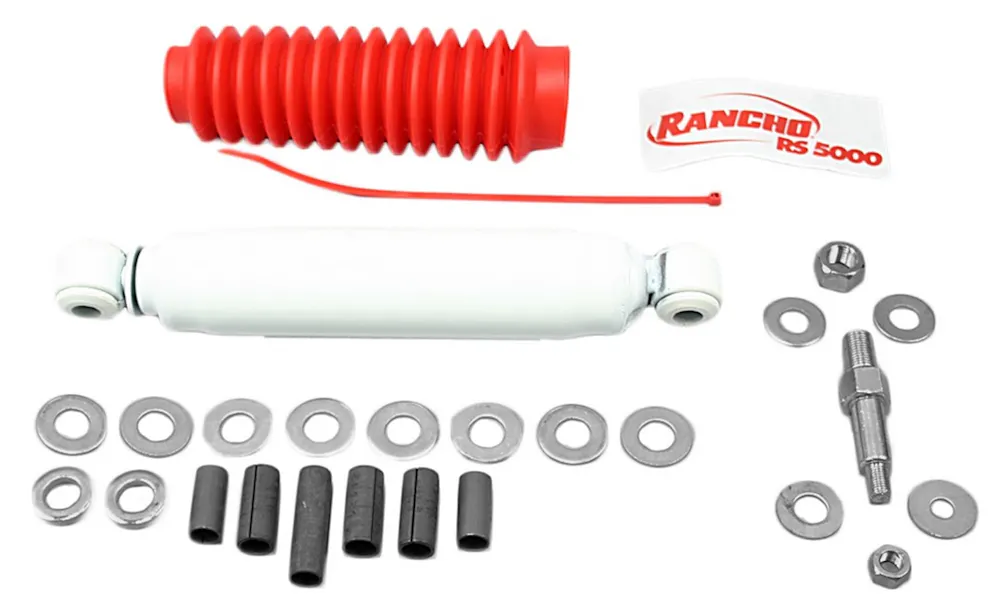

Description: RS5000 Shock; Rancho RS5000 RS5006 Shock Absorber

This part number has been superseded by RS55006.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1995-2004	Toyota Tacoma

Specifications

GTIN: 00039703500609
Weight: 5.75 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
EO: Legal US
Life cycle: Discontinued
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.18
California Proposition 65: No
Collapsed Length: 11.750 in.
Collapsed Length (in.): 11.750
Compressed Bumper Stop: No
Compressed Length: 11.750
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 17.96
Extended Length (in.): 17.960 in.
Finish: Painted
Fully Open Length: 17.960 in.
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code: L1
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2004
Min Year Covered: 1995
Most Popular Make / Model: Toyota Tacoma
Most Popular Make/Model: Toyota Tacoma
Most Popular Year: 2004
Parts Pack: P00915,P01057
Parts Pack(s): P00915,P01057
Product Grade: Premium
Reserve Tube Diameter: 2.18
Shock Stroke: 6.210 in.
Shock Stroke (in.): 6.210
Total Part VIO: 103586
Travel Length: 6.21
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Code: L1
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
