Melling Engine Parts / Melling Tool Co. · M-64
Part #: M-64
UPC: 729295100867
Log in for inventory
Notify me when this item is in stock.

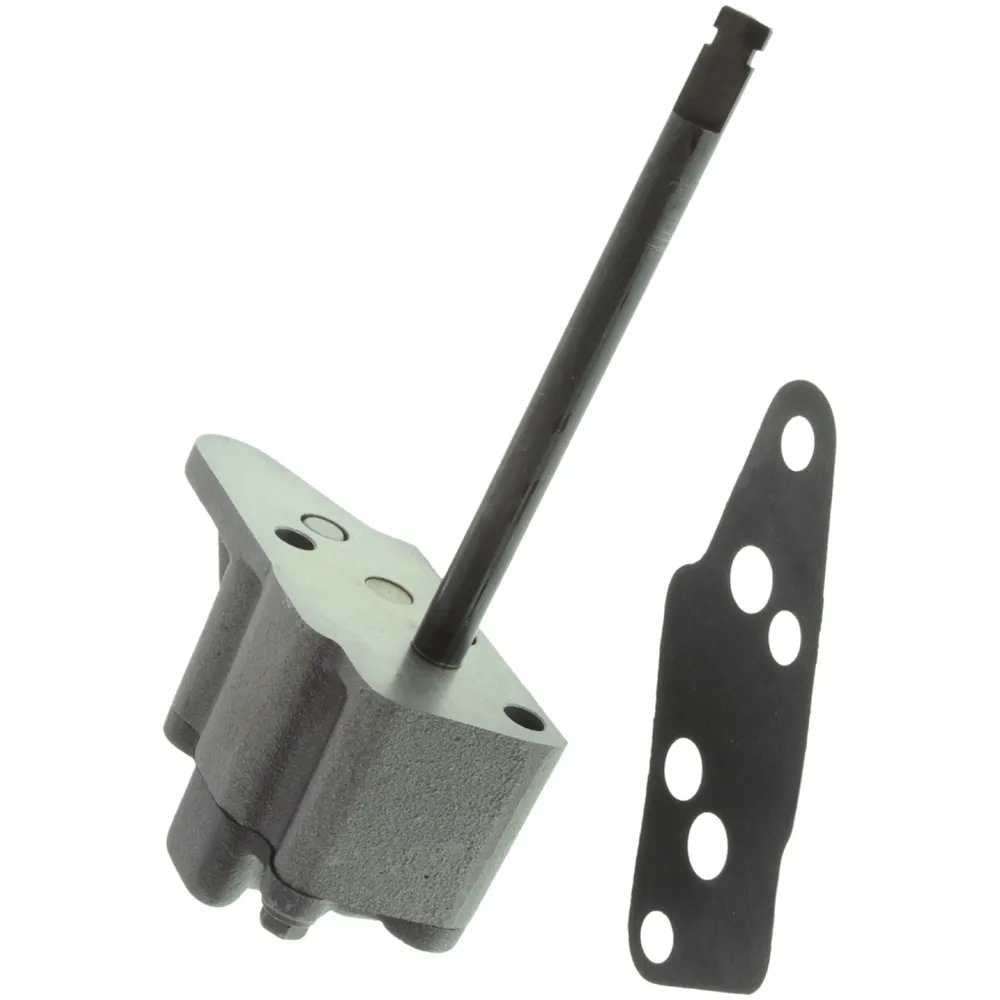

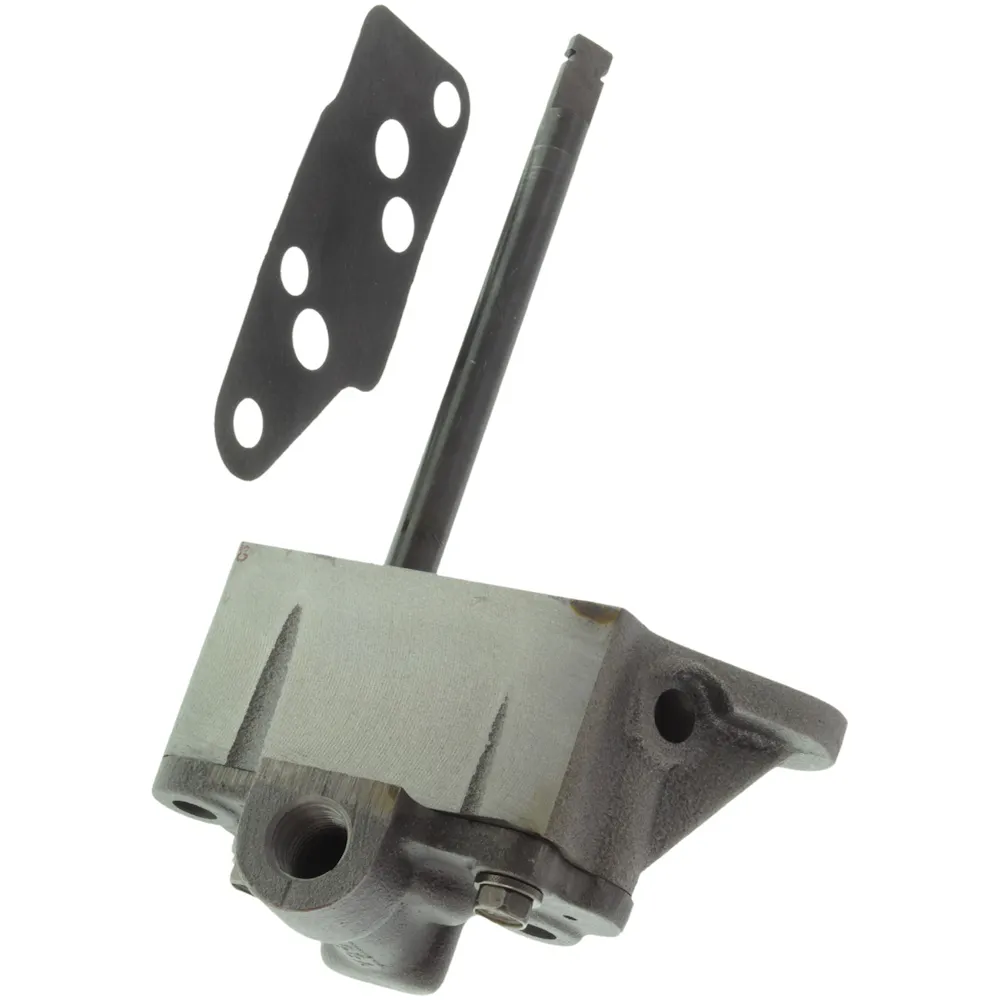

Description: Stock Replacement Oil Pump; M-64 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Description:
This part number has been superseded by K-64.
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 1958-1966 | American Motors Ambassador |
| 1961 | American Motors Classic |
| 1963-1966 | American Motors Classic |
| 1965-1966 | American Motors Marlin |
| 1958-1961 | American Motors Rebel |
| 1966 | American Motors Rebel |
| 1965-1966 | Jeep Gladiator |
| 1965-1966 | Jeep J-100 |
| 1965 | Jeep J-200 |
| 1965 | Jeep J-210 |
| 1965 | Jeep J-220 |
| 1965 | Jeep J-230 |
| 1965-1966 | Jeep J-2500 |
| 1965-1966 | Jeep J-2600 |
| 1965-1966 | Jeep J-2700 |
| 1965-1966 | Jeep J-2800 |
| 1965 | Jeep J-300 |
| 1965 | Jeep J-310 |
| 1965 | Jeep J-320 |
| 1965 | Jeep J-330 |
| 1965-1966 | Jeep J-3500 |
| 1965-1966 | Jeep J-3600 |
| 1965-1966 | Jeep J-3700 |
| 1965-1966 | Jeep J-3800 |
| 1965-1966 | Jeep Wagoneer |
Specifications
- GTIN
- 00729295100867
- Weight
- 4.46 lb
- Height
- 4.75 in
- Length
- 10.75 in
- Width
- 6.25 in
- EO
- Legal US
- Life cycle
- Superseded
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Drive Type
- Drive Shaft
- Gasket Or Seal Included
- Yes
- Grade Type
- Standard Replacement
- Height
- 3.195
- Housing Material
- Cast Iron
- Mounting Hole Diameter
- 0.393
- Mounting Hole Quantity
- 3
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.565
- Title
- Engine Oil Pump
- Width
- 5.21
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1958-1966 American Motors Ambassador; 1961 American Motors Classic; 1963-1966 American Motors Classic; 1965-1966 American Motors Marlin; 1958-1961 American Motors Rebel; 1966 American Motors Rebel; 1965-1966 Jeep Gladiator; 1965-1966 Jeep J-100; 1965 Jeep J-200; 1965 Jeep J-210; 1965 Jeep J-220; 1965 Jeep J-230; 1965-1966 Jeep J-2500; 1965-1966 Jeep J-2600; 1965-1966 Jeep J-2700; 1965-1966 Jeep J-2800; 1965 Jeep J-300; 1965 Jeep J-310; 1965 Jeep J-320; 1965 Jeep J-330; 1965-1966 Jeep J-3500; 1965-1966 Jeep J-3600; 1965-1966 Jeep J-3700; 1965-1966 Jeep J-3800; 1965-1966 Jeep Wagoneer
