CURT · 56003
Part #: 56003
UPC: 612314560035
Log in for inventory
Notify me when this item is in stock.

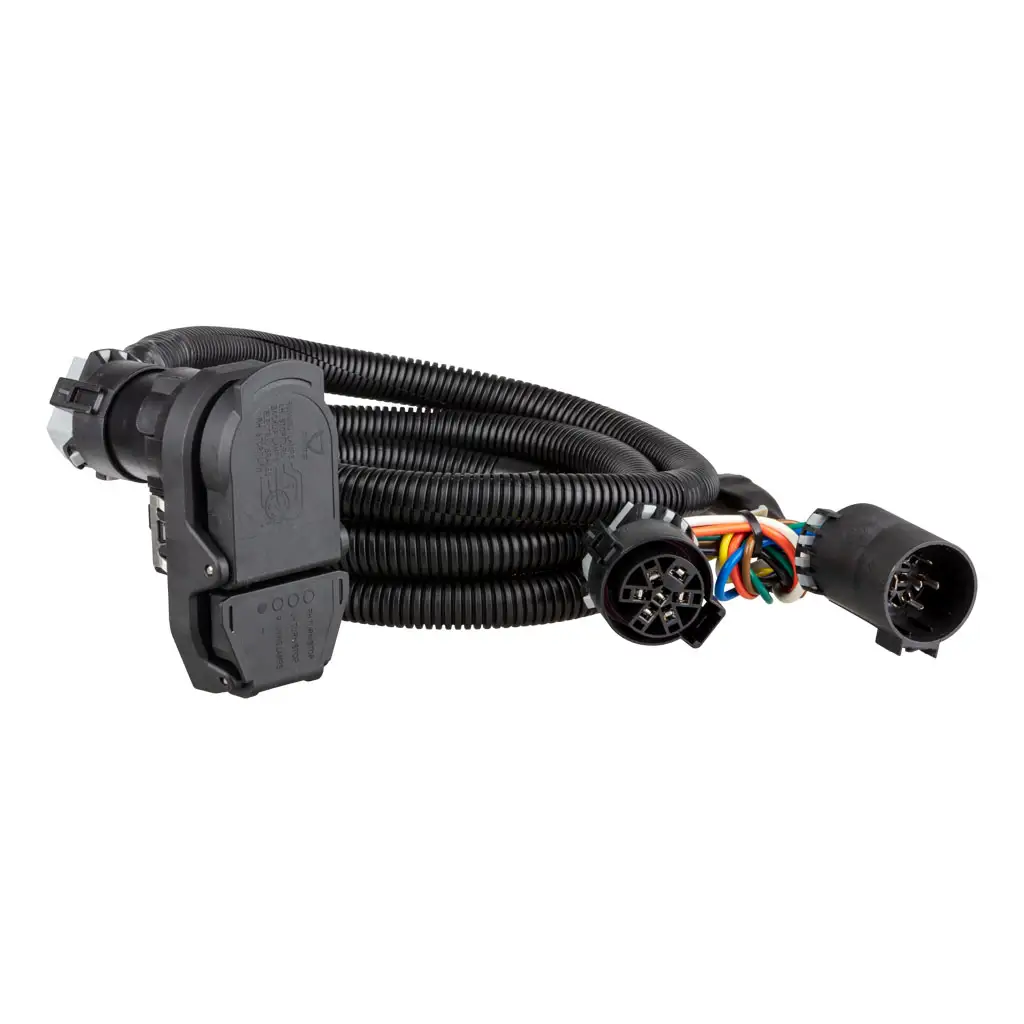

Description: 7' Custom Wiring Extension Harness (Adds 4-Way, 7-Way RV Blade to Truck Bed); CURT 56003 7-Foot Vehicle-Side Truck Bed 4-Pin, 7-Pin Trailer Wiring Harness Extension, Select Chevrolet, Dodge, Ford, GMC, Nissan, Ram, Toyota
Description:
Description
There is nothing like the luxury and power that go along with heavy-duty towing. 5th wheel RVs offer a deluxe, home-away-from-home experience unlike any other, while gooseneck trailers possess a strength that far surpasses most other trailer options. As with any trailer, however, 5th wheels and goosenecks must be equipped with the proper lighting and electrical systems, and tend to require even more complex connectors than a standard receiver-type trailer setup. Make things simple with a CURT 5th wheel / gooseneck extension harness. These wiring harnesses are designed to put an extra connector socket in the bed of your pickup truck while still retaining power to the rear connector socket mounted on your bumper. This is done by plugging into the back of the existing original equipment (OEM) harness and routing through the body of the truck to a hole in the truck bed, providing a connector that is ready to accommodate your 5th wheel or gooseneck trailer.
This CURT extension harness provides connection points for both 4-way flat and 7-way RV blade connectors, and it comes in a length of 7'. It is compatible with select models of Chevrolet, Dodge, Ford, GMC, Nissan, Ram and Toyota (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). When you need a towing electrical solution that allows you to switch back and forth between your receiver hitch and specialized trailer hitch, CURT gets you plugged in
Features & benefits
- 7' Custom Wiring Extension Harness (Adds 4-Way, 7-Way RV Blade to Truck Bed)

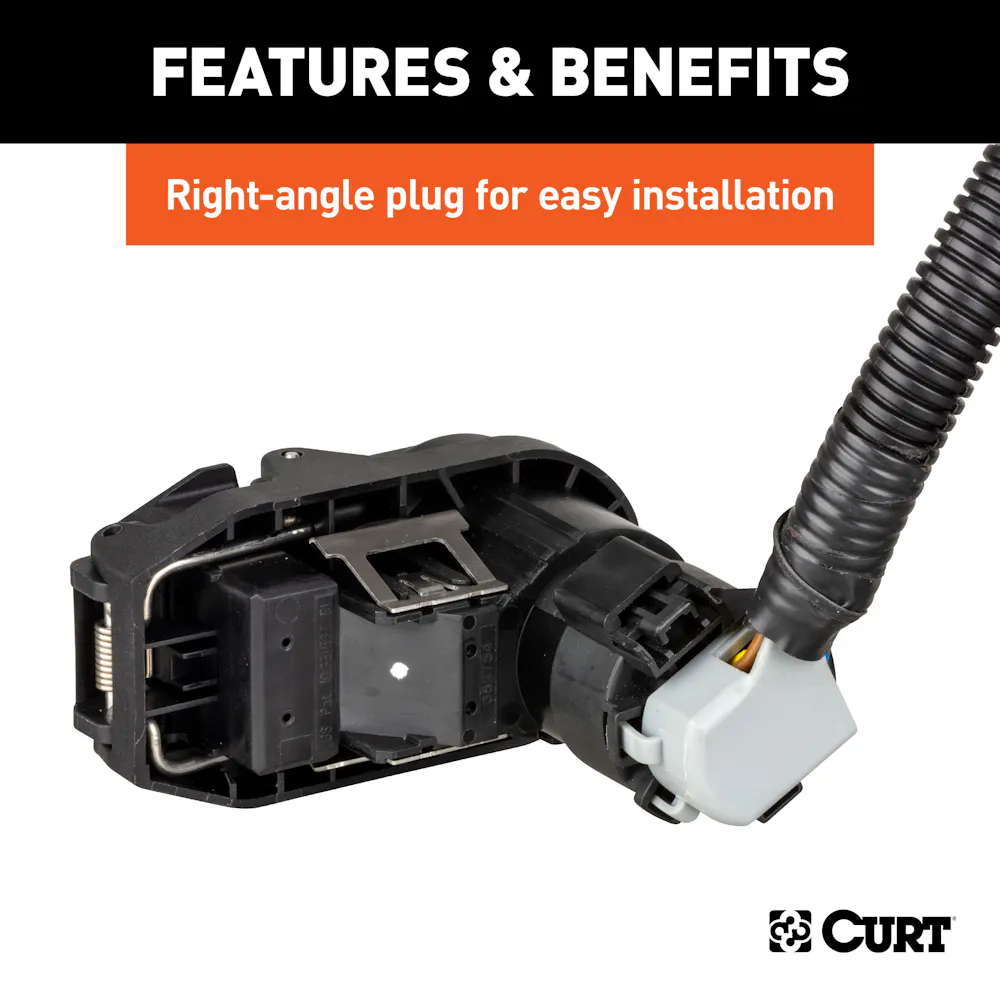

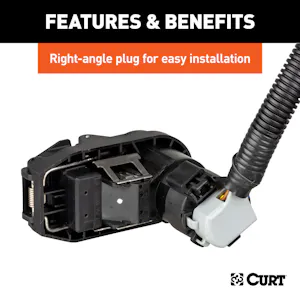

- 7' extension with right-angle plug for easy installation
- Spring-loaded dust covers keep connectors clean when not in use
- Slit loom keeps wires contained and well protected
- Factory cutout in truck bed required for installation
- Routes a dual-output socket into truck bed while retaining use of rear socket
- Provides standard 4-way flat and 7-way RV blade
- Simple plug-and-play design eliminates the need for cutting or splicing
- Allows for easy connection of 5th wheel or gooseneck wiring
- 4-way flat output connects tail lights, brake lights and turn signals
- 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
Information
7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
Application summary
| Year | Make / model |
|---|---|
| 2019-2026 | Chevrolet Silverado 1500 |
| 2022 | Chevrolet Silverado 1500 LTD |
| 2020-2026 | Chevrolet Silverado 2500 HD |
| 2020-2026 | Chevrolet Silverado 3500 HD |
| 2019-2026 | GMC Sierra 1500 |
| 2022 | GMC Sierra 1500 Limited |
| 2020-2026 | GMC Sierra 2500 HD |
| 2020-2026 | GMC Sierra 3500 HD |
Specifications
- GTIN
- 00612314560035
- Weight
- 2.56 lb
- Height
- 4 in
- Length
- 8 in
- Width
- 8 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Electrical Package Type
- Packaged
- Finish
- Blank
- Finish - XA
- Blank
- Harness Length
- 7'
- Item Class - XA
- CME
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 10.750
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 20612314560039
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 18.500
- Master Case Qty - XA
- 4
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 11.240
- Master Case Width Inches - XA
- 8.500
- Material - XA
- Blank
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 40
- Pallet Cases Per Layer - XA
- 10
- Pallet Layer of Cases - XA
- 4
- Pallet Qty - XA
- 160.000
- Pallet Total Height Inches - XA
- 47.500
- Pallet Total Weight Per - XA
- 479.600
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 125.0
- Retail Height - XA
- 4.000
- Retail Length - XA
- 8.000
- Retail Width - XA
- 8.000
- Sales Family Code - XA
- ELECT
- Sales Family Description - XA
- ELECTRICAL COMPONENTS
- Sales Group Description - XA
- ELECTRICAL ADAPTER
- Shipping Weight - XA
- 2.560
- Side Application Type Description - XA
- Not Applicable
- T-Connector Location
- T4
- Tariff 301 - XA
- No
- Terminal Type
- Pin
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2019-2026 Chevrolet Silverado 1500; 2022 Chevrolet Silverado 1500 LTD; 2020-2026 Chevrolet Silverado 2500 HD; 2020-2026 Chevrolet Silverado 3500 HD; 2019-2026 GMC Sierra 1500; 2022 GMC Sierra 1500 Limited; 2020-2026 GMC Sierra 2500 HD; 2020-2026 GMC Sierra 3500 HD
