Centerforce · 11369010

Part #: 11369010
UPC: 788442026207

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: Centerforce

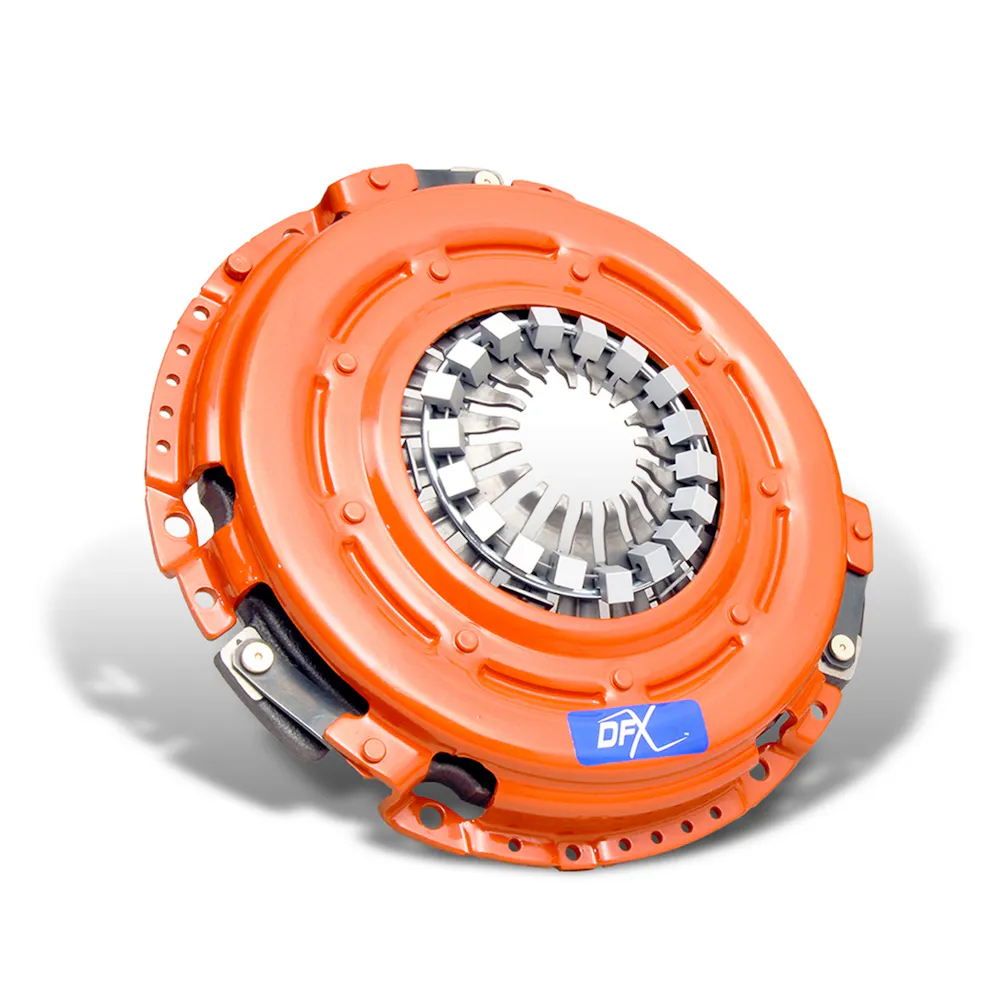

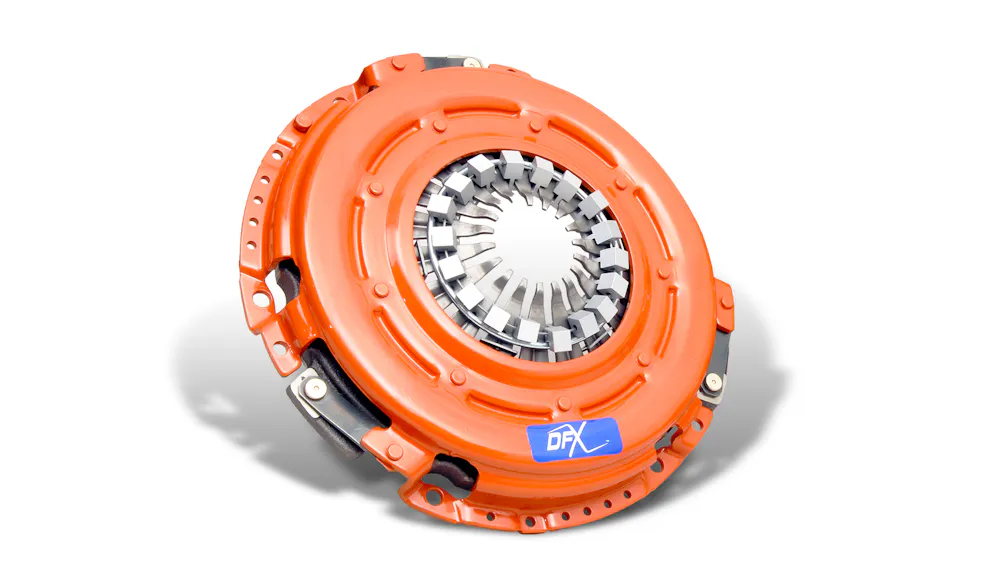

Description: DFX(R), Clutch Pressure Plate; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.

Description:

This part number has been superseded by 311369010.

Description

The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.

Features & benefits

  • Added Durability

Application summary

Year Make / model
1997-2004 Chevrolet Corvette
2006-2013 Chevrolet Corvette
2005 Pontiac GTO

Specifications

GTIN
00788442026207
Weight
25.25 lb
Height
4 in
Length
14 in
Width
14 in
EO
Legal US
Life cycle
Superseded
AAM brand code
CEN
Warehouse brand code
CEN
AAIA brand code
BDPL

Attributes

AAM Standard Pack
1
Attribute Data
2
California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern
14
Clutch Disc Diameter
12
Counterweight Assist
Yes
Flywheel Deck Height
2.110
Includes
Pressure Plate, Bolts
Material
Cast Iron Pressure Plate
Outside Diameter of Friction Surface (Standard)
12
Replaceable Friction Surface
N
SFI 1.1 Approved
Y
Title
PN: 11369010 - DFX, Clutch Pressure Plate

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1997-2004 Chevrolet Corvette; 2006-2013 Chevrolet Corvette; 2005 Pontiac GTO
